4. Position bracket (A) and install back bolts (C).
The two shorter bolts are installed at the back inboard
locations.
5. Install bottom bolts (B).
6. Tighten bolts as follows:
a. Snug bottom bolts (B), then snug back bolts (C).
b. Tighten
and
torque
back
bolts
(C)
to
330 ft lbf (447 N·m).
c. Tighten
and
torque
bottom
bolts
(B)
to
330 ft lbf (447 N·m).
7. Lower windrower to ground.
IMPORTANT:
Torque bolts after first 5 and 10 hours of operation.

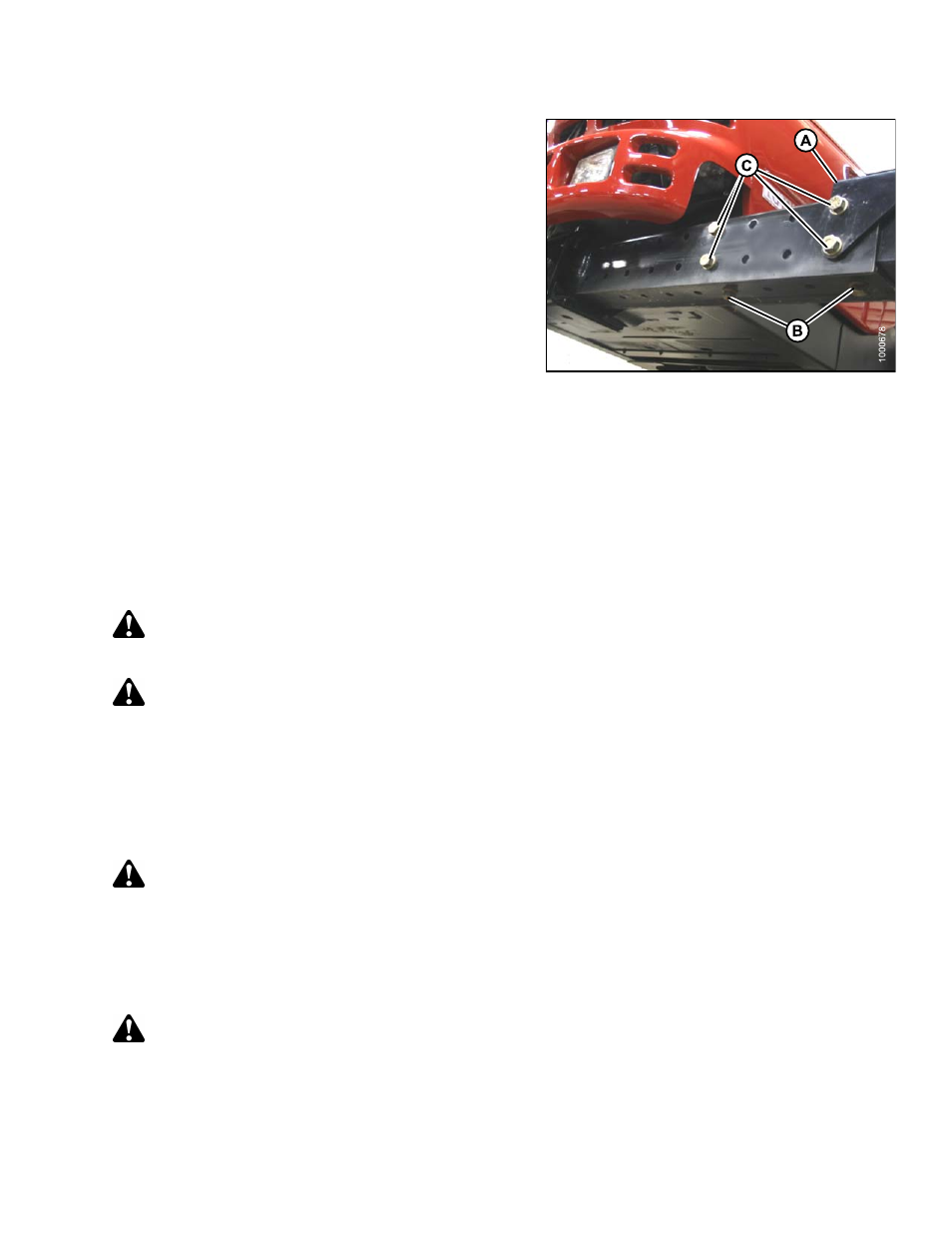

Figure 4.31: Caster Wheel Extensions
4.3.8
Transporting the Windrower
Driving on the Road
The M205 Self-Propelled Windrower is designed to be driven on the road with the engine facing forward to provide
better visibility for the Operator and improved stability for the machine. The windrower is also capable of being driven
on the road in cab-forward mode, but at a reduced speed and under restricted conditions.
WARNING
Collision between windrower and other vehicles may result in injury or death.
WARNING
When driving windrower on public roadways:
• Obey all highway traffic regulations in your area. Use pilot vehicles in front and rear of windrower if
required by law.
• Use slow-moving vehicle emblem and flashing warning lights unless prohibited by law.
• If width of attached header impedes other vehicle traffic, remove header and install a MacDon approved
weight box.
WARNING
• Do NOT drive windrower on the road in the cab-forward mode, unless the optional lighting marking kit
is installed, as lighting/reflector visibility will not be compliant with road regulations. Refer to
Lighting and Marking for Cab-Forward Road Travel, page 431
• Do NOT drive windrower on a road or highway at night or in conditions that reduce visibility, such as
fog or rain. The width of the windrower may not be apparent under these conditions.
CAUTION
Operate both steering wheel and ground speed lever slowly while becoming familiar with the machine.
Remember that steering is more sensitive when speed-range control is in road speed position. Avoid the
common tendency of new Operators to oversteer.
169887
167
Revision A
