OPERATOR’S STATION
4. Press right (A) arrow to select Yes. Press SELECT (B).
5. VIEW ERROR CODES? is displayed on the upper line.
• NO/YES is displayed on the lower line.
6. Press right (A) arrow to select YES. Press SELECT (B).
• VIEW WINDRWR CODES? is displayed on the
upper line.
• NO/YES is displayed on the lower line.

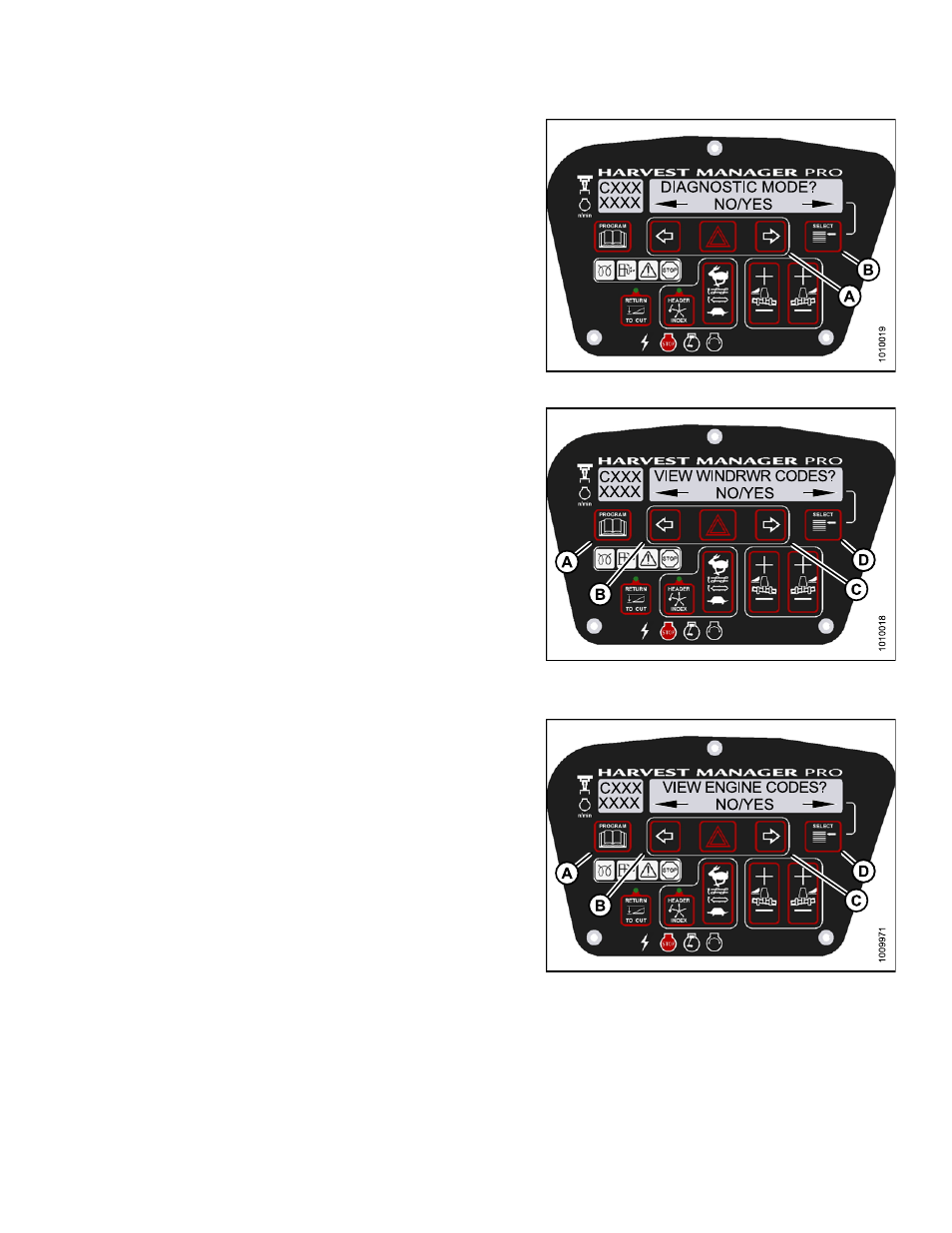

Figure 3.150: Selecting Diagnostic Functions
7. Press right (C) arrow to select YES. Press
SELECT (D).
• The most recent error code will be displayed.
• Refer to 9 Cab Display Module (CDM) Error Codes,
page 453 .
8. Press and left (B) or right (C) arrow to cycle through
the last 10 recorded windrower error codes until EXIT
WINDROWER CODES is displayed.
9. Press right (C) arrow to select YES. Press
SELECT (D).
• VIEW ENGINE CODES is displayed on the
upper line.
• NO/YES is displayed on the lower line.
Figure 3.151: Viewing Windrower Codes
10. Press right (C) arrow to select YES. Press SELECT
(D).
11. Press and left (B) or right (C) arrow to cycle through the
last 10 recorded engine error codes until EXIT ENGINE
CODES is displayed.
• Refer to 8 Engine Error Codes, page 435 .
12. Press right (C) arrow to select YES. Press SELECT
(D).
13. Press PROGRAM (A) to exit Programming
Mode or press SELECT (D) to proceed to next
DIAGNOSTIC MODE.
Figure 3.152: Viewing Engine Codes
