CAUTION
Check to be sure all bystanders have cleared the area.
7. Press SELECT (E) until KNIFE DRIVE SPD XXXX is
displayed on the upper line.
IMPORTANT:
Do NOT over speed the knife drive.
8. Press and hold HAZARD (C) button.
• Press left (B) arrow to decrease knife drive speed.
• Press right (D) arrow to increase knife drive speed.
Verify the knife drive is functioning properly.
9. Release the HAZARD (C) button.
The knife drive
will stop.

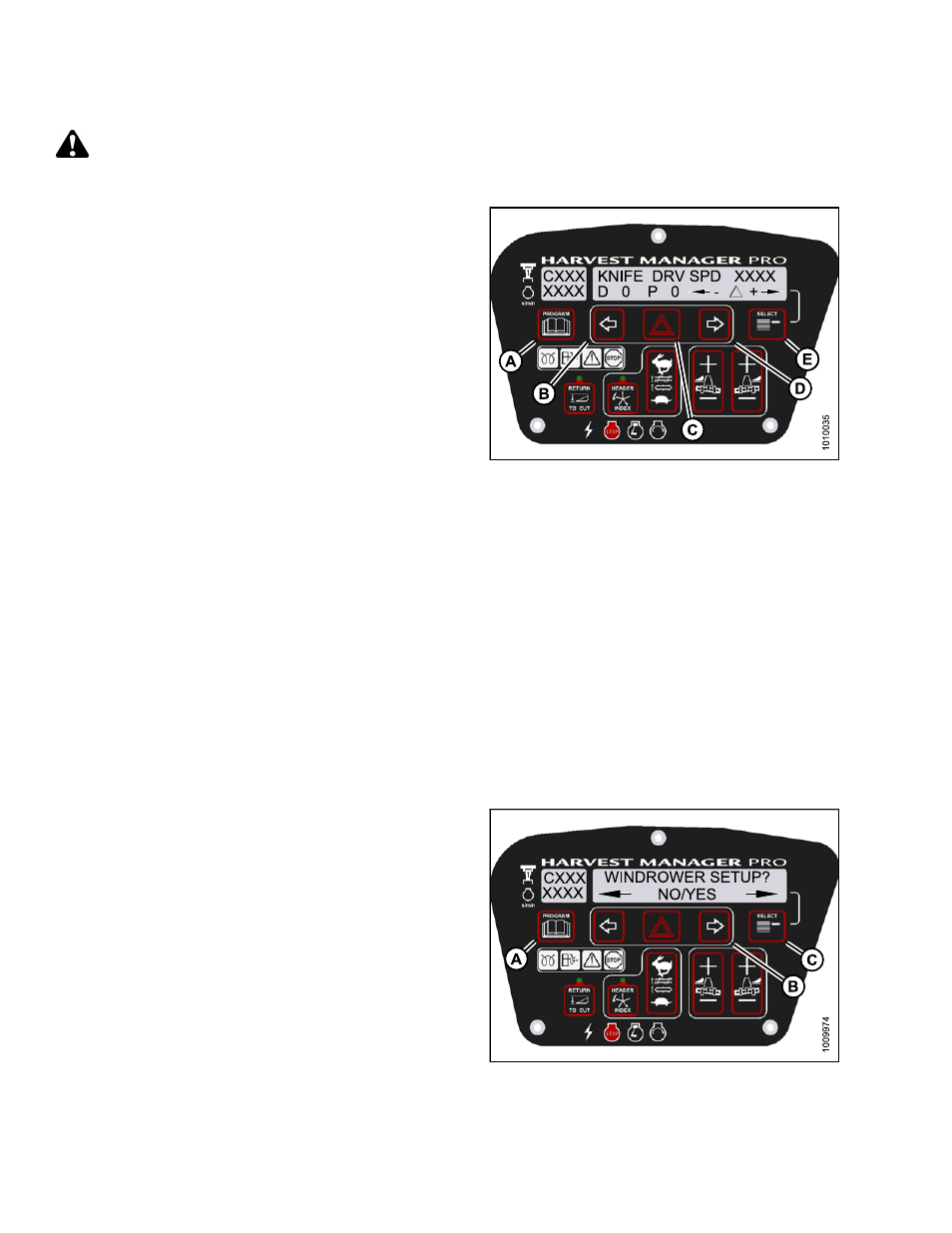

Figure 3.187: Activating Knife Drive
10. Press PROGRAM (A) to exit Programming Mode or
press SELECT (E) to proceed to next ACTIVATE
FUNCTION.
Testing the Draper Drive Circuit using the Cab Display Module (CDM)
IMPORTANT:
Do not over speed a drive for a significant length of time. Doing so can lead to vibration, belt failures. or
other over speeding related problems.
NOTE:
• A draper header MUST be attached to windrower to follow this procedure. For more information, refer to
Attaching and Detaching Headers, page 202
• Engine MUST be running to perform this procedure.
1. Start the engine.
Refer to
2. Press PROGRAM (A) and SELECT (C) on cab display
module (CDM) to enter Programming Mode.
• WINDROWER SETUP? is displayed on the
upper line.
Figure 3.188: CDM Programming Buttons
169887
