OPERATION
61

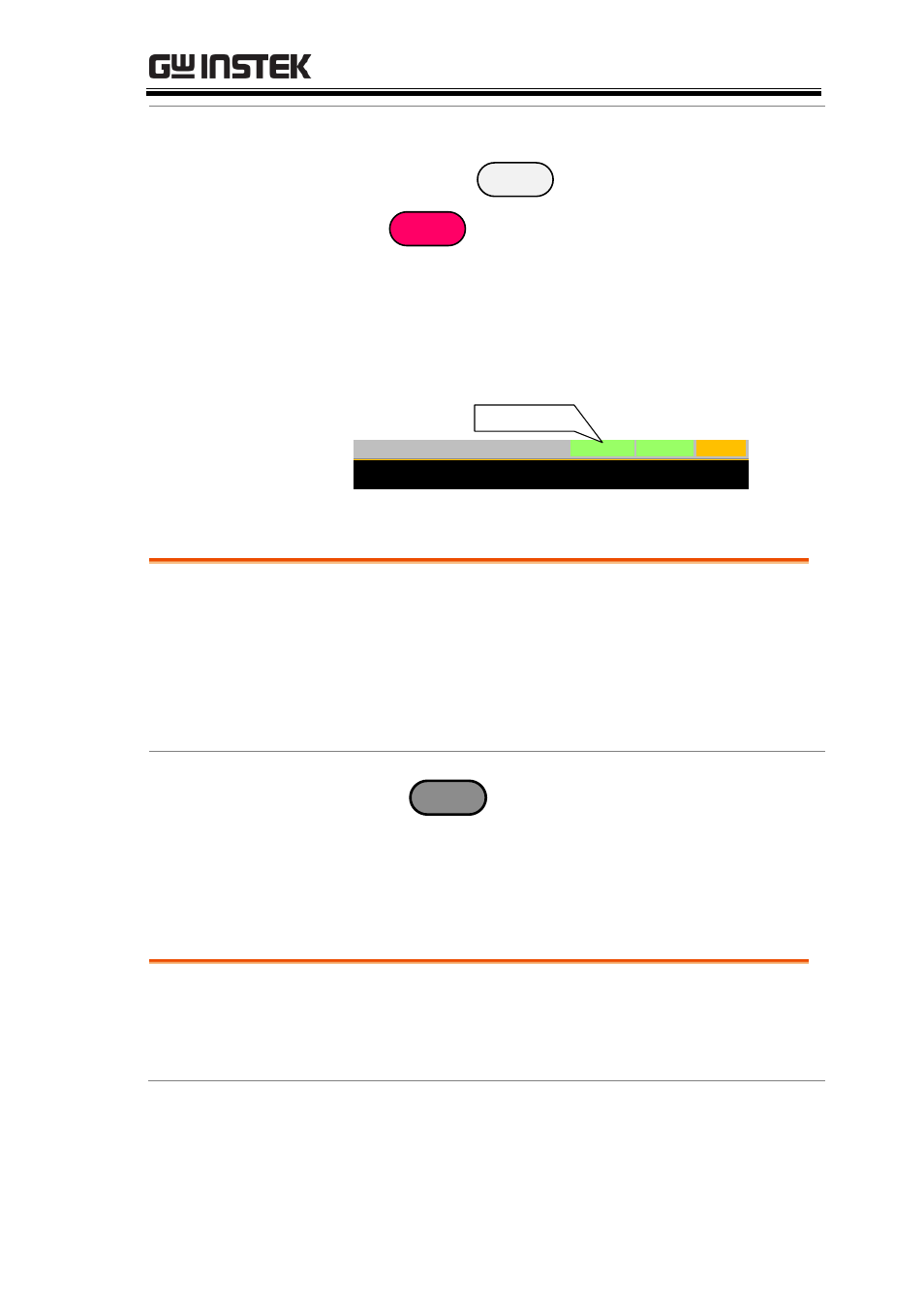

Operation 1. The short function can be turned on and off by
pressing the Short key.
 The Short
key will turn red when the short
function is active.
 The Short icon will appear when the short
function is active.
Range: Toggle, Hold
Display
Mode
CP
IRange
H 35A
VRange
L 15V
Function
Dynamic
Configure
1.500
V
0.000
A
1.50
w
Timer1 0.025
Level2 0.00
Level1 0.00
LOAD RS232 SHORT
Fine
03/Sep/2012
mS
W
W
SHORT on
Short Key Configuration
Description The Short key can be configured to Toggle or
Hold. By Default the Short key is set to Toggle.
 Toggle: Pressing the Short key will toggle the
shorting function on or off.
 Hold: Holding the short key will short the load.
Operation
1. Press Main > Configure[F5] > Other[F2] and
set the Short Key setting.
Range: Toggle, Hold
Locking the Front Panel Controls
Description The keys and scroll wheel on the front panel
can be locked to prevent settings from being
changed.
