PEL-3000 User Manual
34
Using the Rear Panel Input Terminals
Description The rear panel input terminals accept up to
M8-sized crimped terminals. The rear
terminals come with a load input terminal
cover for safety.
Caution
The front panel input terminals on the PEL-3000
are physically connected to the rear panel
terminals.
Steps 1. Turn the power off from the rear panel or put
the unit into standby mode.
2. Turn the power off from the DUT.

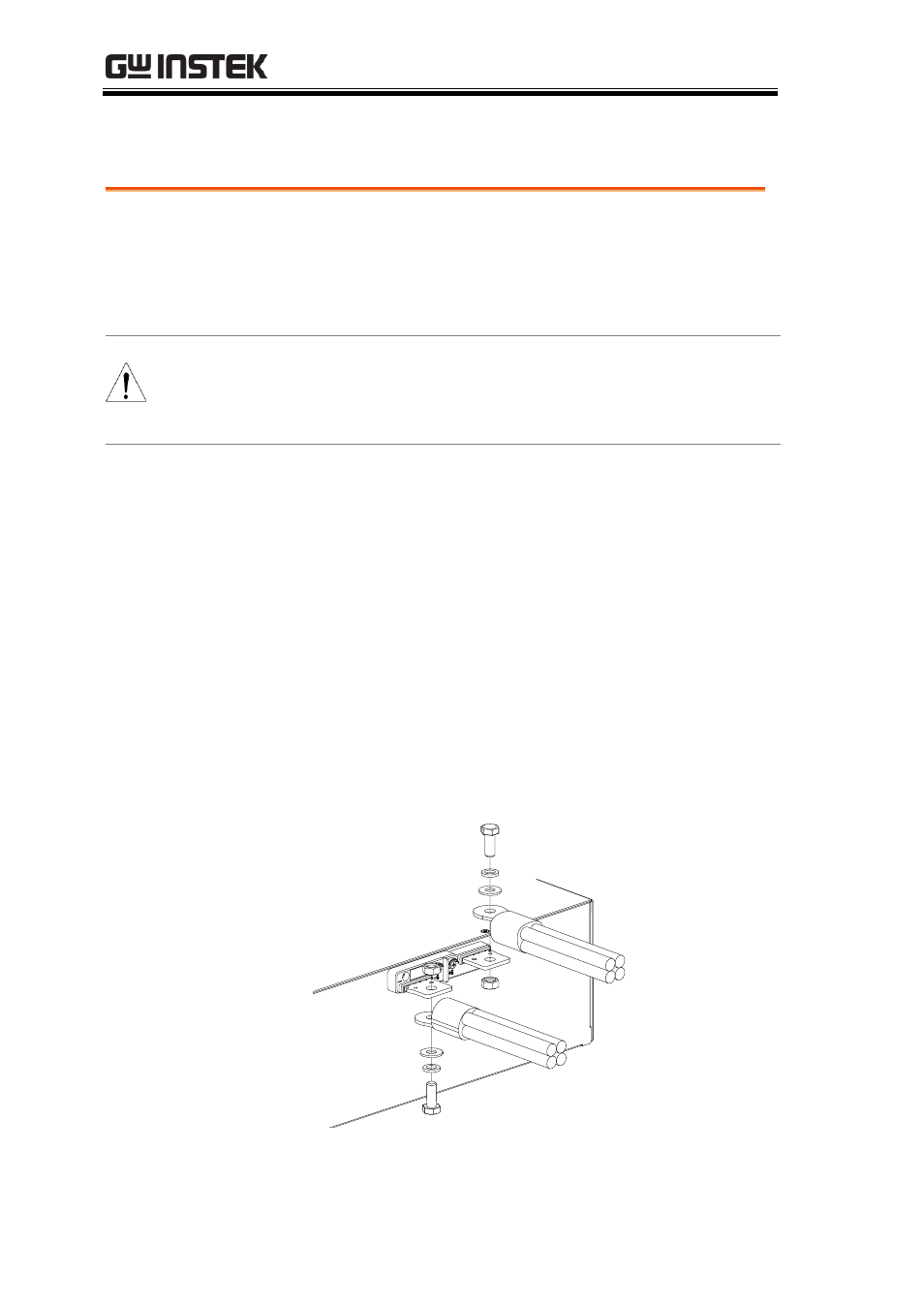

3. Connect the load wires to the input terminals:
 Connect the positive (+) input terminal on the
load generator to the high potential output of
the DUT.
 Connect the negative (-) input terminal to the
low potential output of the DUT.
+ potential
- potential
