PEL-3000 User Manual
58

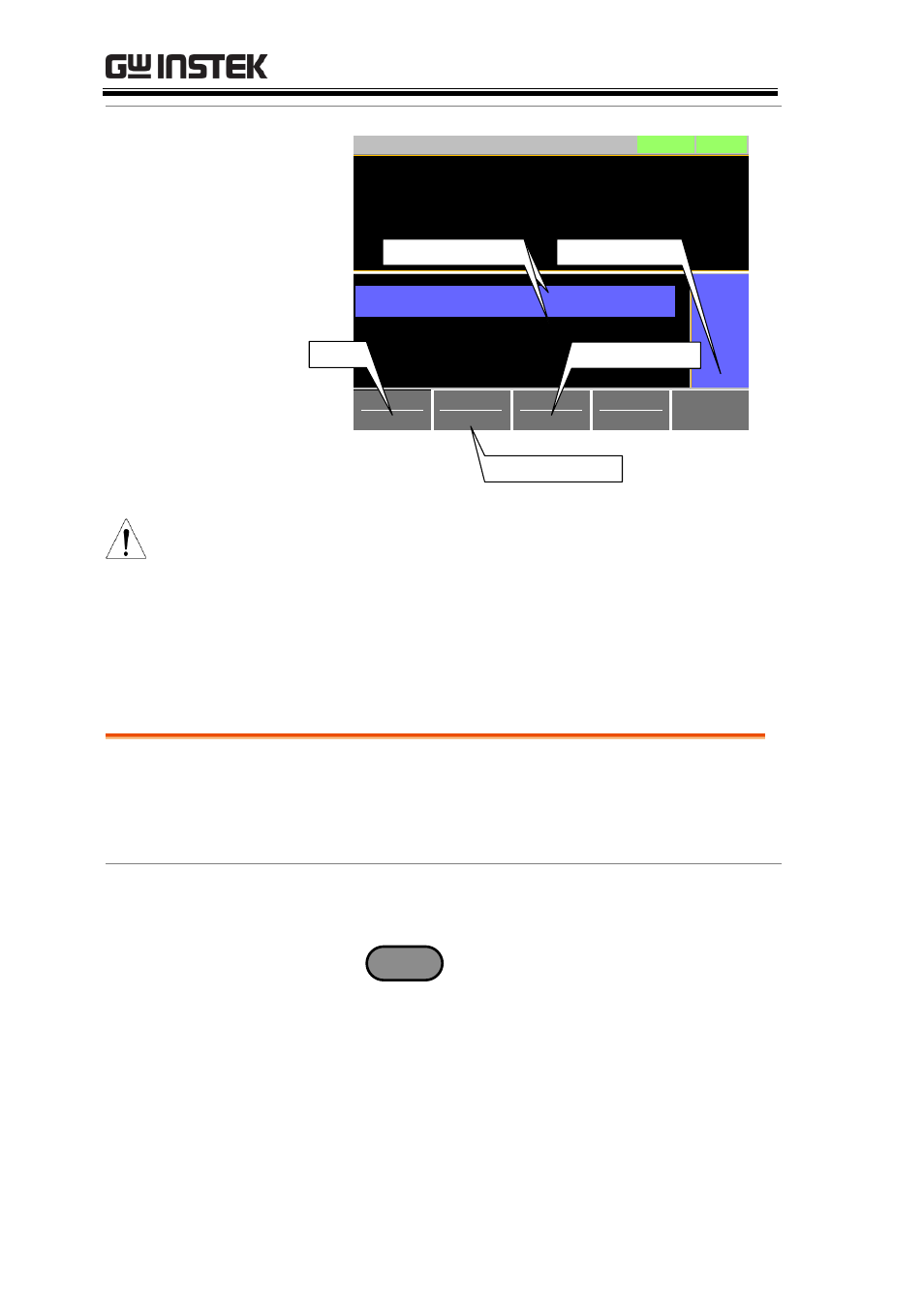

Display
Mode
CP
I Range
H 35A
V Range
H 150V
Function
Static
Configure
0.00
V
0.000
A
0.00
w
CP B Value 0.00
CP A Value 0.00
LOAD RS232
A Value
Fine
03/Sep/2012
W
W
Current range
Active setting Current setting Power settings
+CV OFF
Mode Voltage range
Note
Basic CP mode configuration is complete. See
page 63 for more configuration options.
The current range and voltage range applies to all
the operating modes.
+CV Mode
Description CV mode can be added to CC, CR and CP
mode.
 The +CV settings apply to all applicable modes.
Operation 1. Make sure the load is off.
2. Press Main
to return to the main menu for
the current mode.
3. Set the +CV voltage level. (You may need to
scroll down to the +CV setting)
Range: OFF ~ rated voltage+5%
