GETTING STARTED
35
Using the Terminal Cover
Description The rear panel terminal cover should be used
to prevent electric shock. The rear panel
terminal covers should always be used when
connecting a load to the rear panel terminals.
As the front panel and rear panel terminals are
physically connected, the terminal cover
should also be used as a safety measure when a
DUT is connected to the front terminals
Caution
Ensure the power is off before making any
connections to the PEL-3000.
Note
In the following diagrams, the cable wiring is not
shown for clarity.

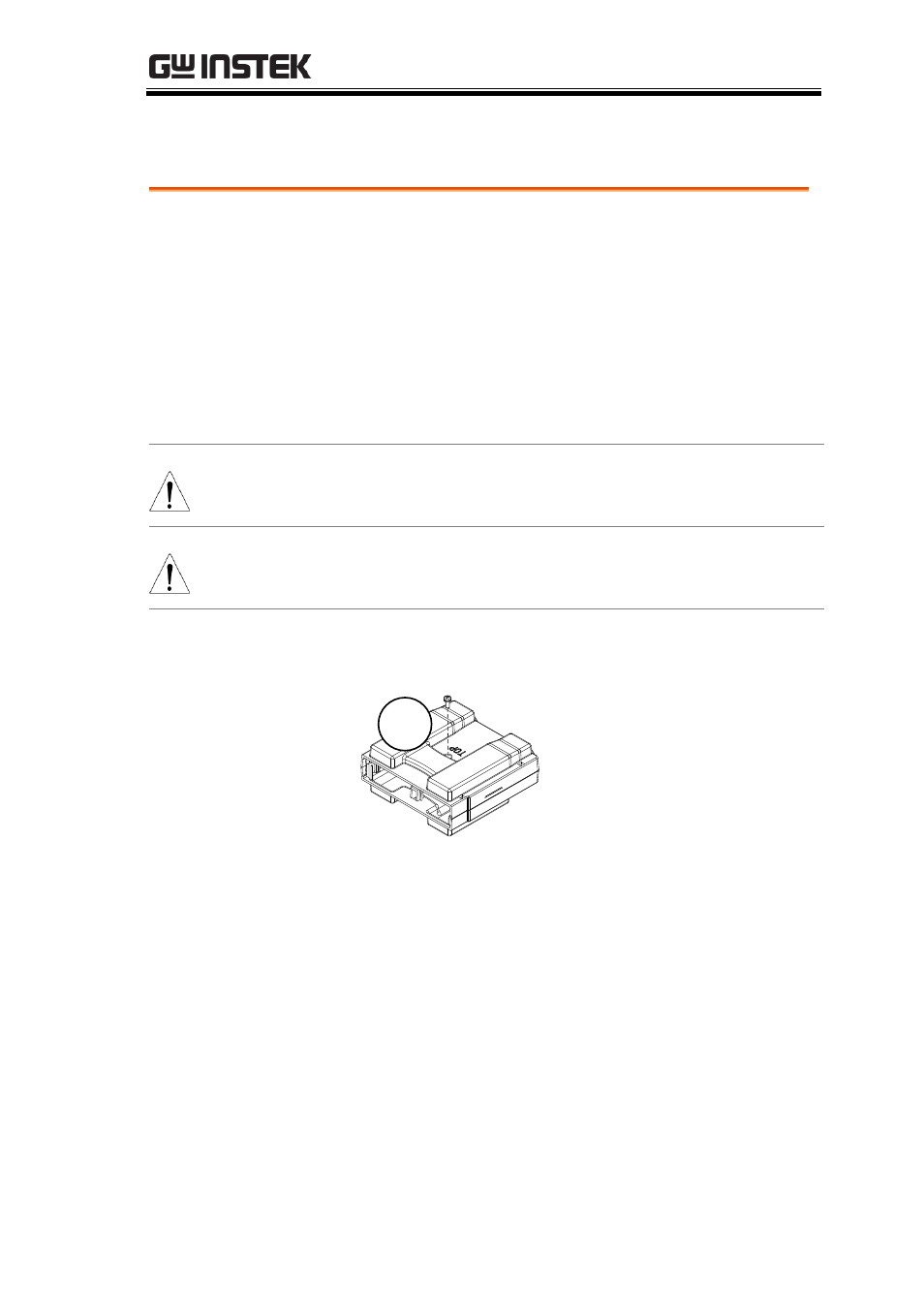

1. Remove the screw holding the top cover to the
bottom cover.
1
2. Line-up the bottom cover with the notches in
the output terminals.
3. Place the top terminal cover over the bottom
cover.
