GETTING STARTED
19

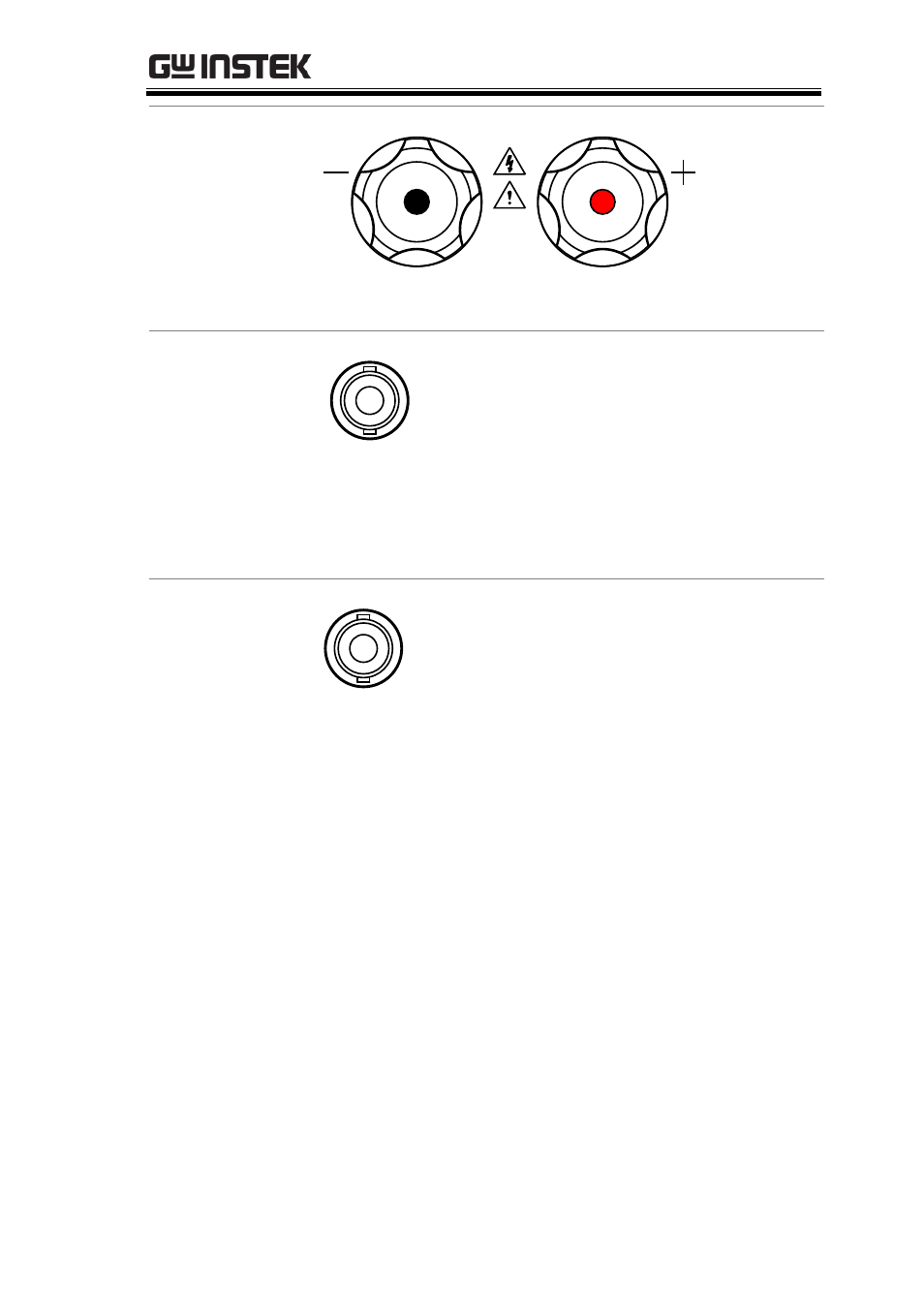

Front panel input
terminals
1.5 - 150V
175W
0 - 35A
Negative terminal. Positive terminal.
IMON Out
I MON OUT
Current monitor BNC terminal:
Output connector used to monitor
the current by outputting a
voltage. An output voltage of 1V
corresponds to the full scale
current for the H and L ranges.
0.1V corresponds to the full scale
current in the M range.
TRIG OUT
TRIG OUT
Trigger out BNC terminal:
Outputs a pulse signal during
sequence or dynamic operation.
The trigger signal has a 5V output
with a pulse width of a least 2us
and an impedance of 500Ω.
