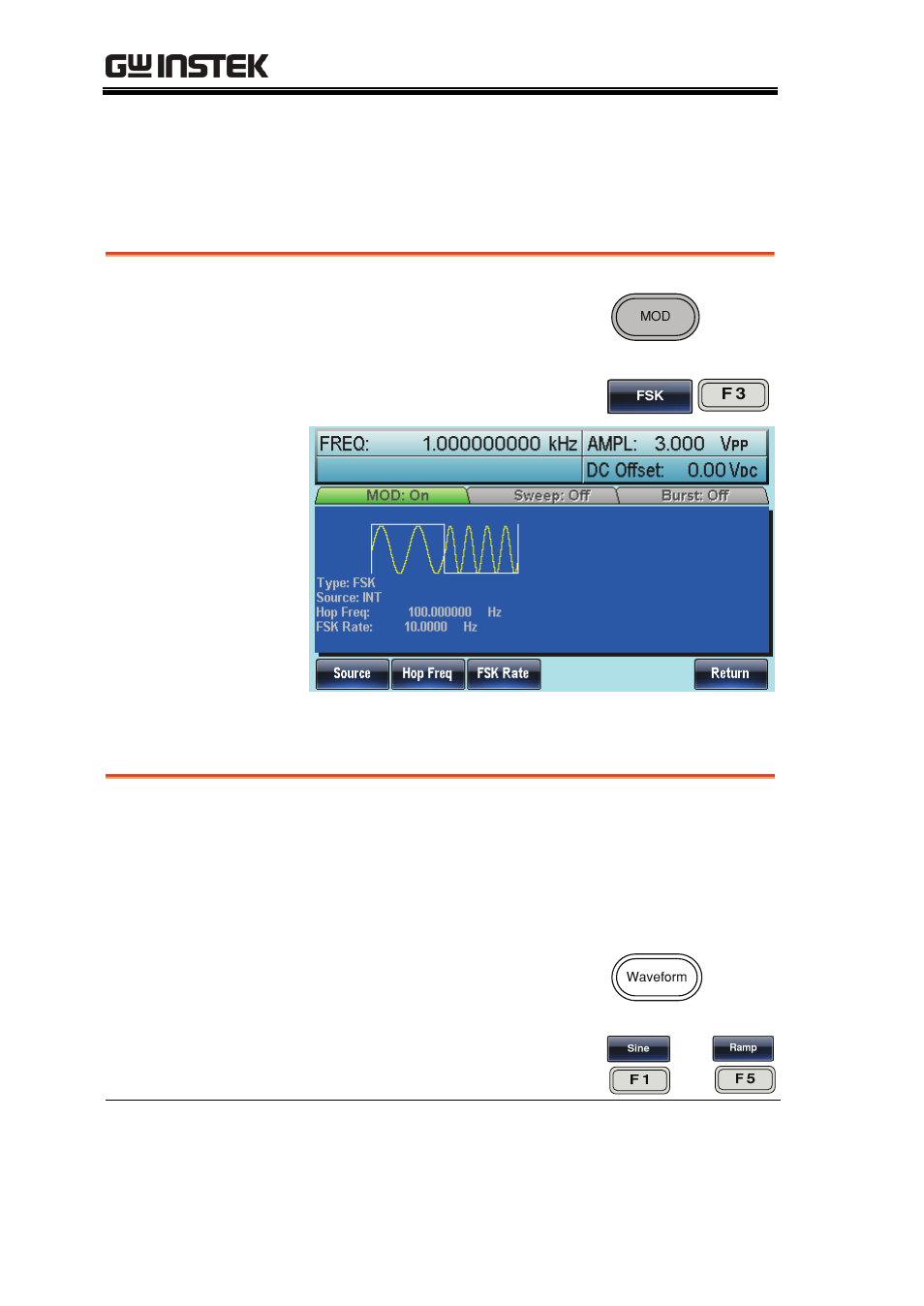

Selecting FSK Modulation
When using FSK mode, the output waveform uses the default
settings for carrier frequency, amplitude and offset voltage.
Panel Operation 1. Press the MOD key.
2. Press F3 (FSK).
FSK Carrier Shape
Background The shape function selects the FSK carrier
waveform shape. The default waveform shape is
set to sine. Noise waveforms cannot be used as
carrier waves.
Panel Operation 1. Press the Waveform key.
2. Press F1~F5 to choose the
carrier wave shape. (bar F4)
~
Range Carrier Shape Sine, Square, Triangle,
Ramp, Pulse
