ARBITRARY WAVEFORMS
169
8. Repeat steps 4~7 for Length
(F2).
9. Press F6 (Return) to return
to the previous menu.

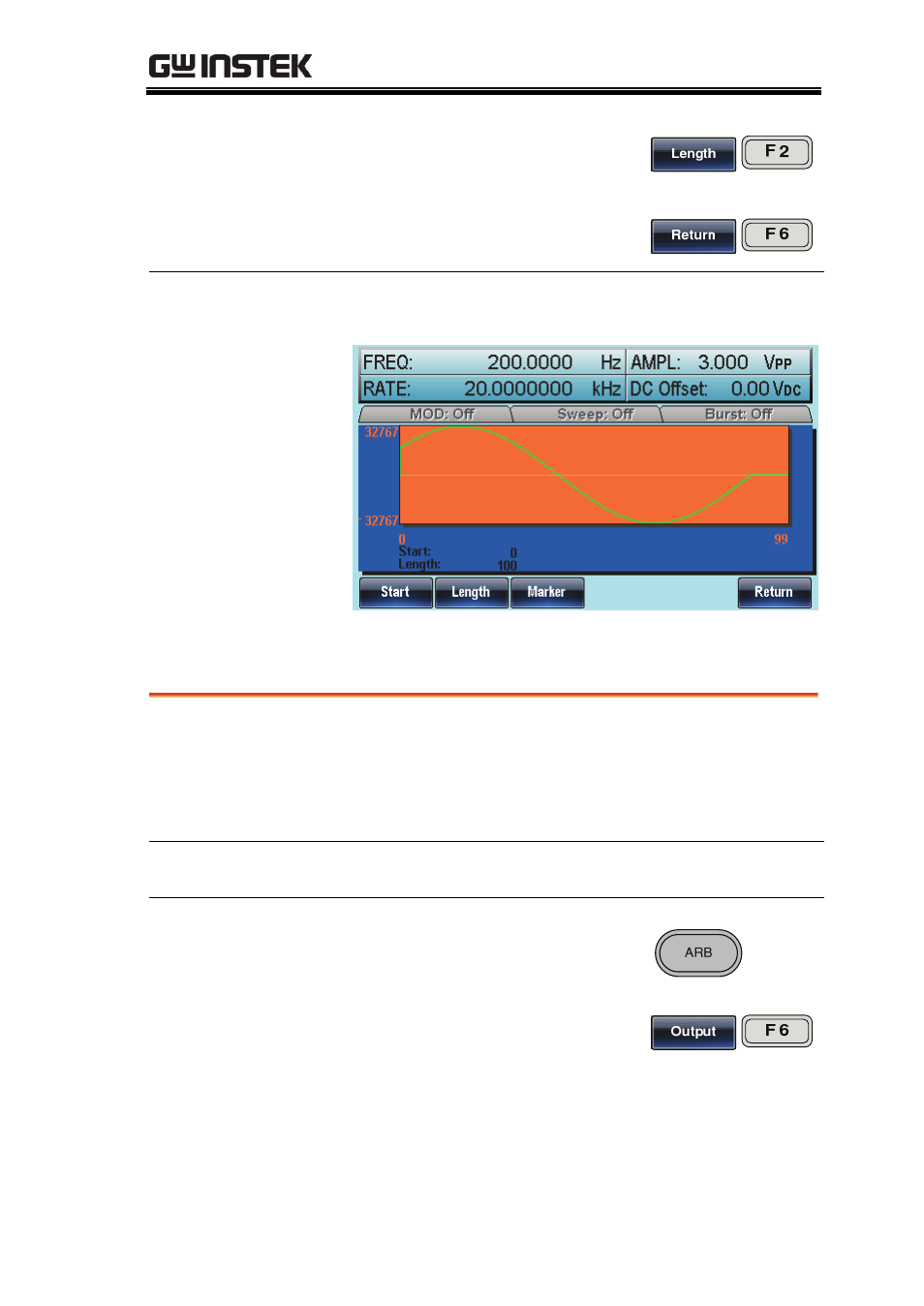

Below the waveform from position 0 with a length of
100 is output from the front panel terminal.
Output an N Cycle Arbitrary Waveform
Background The output of an arbitrary waveform can be
repeated for a designated number of cycles. The N
Cycle function uses a soft key trigger to trigger the
output.
Range 1 to 1048575 cycles
Panel Operation 1. Press the ARB key.
2. Press F6 (Output).
3. Define the Start and Length
of the arbitrary waveform
output.
Page 168.
