Modulation Depth
Modulation depth is the ratio (as a percentage) of the unmodulated
carrier amplitude and the minimum amplitude deviation of the
modulated waveform. In other words, modulation depth is the
maximum amplitude of the modulated waveform compared to the
carrier waveform as a percentage.

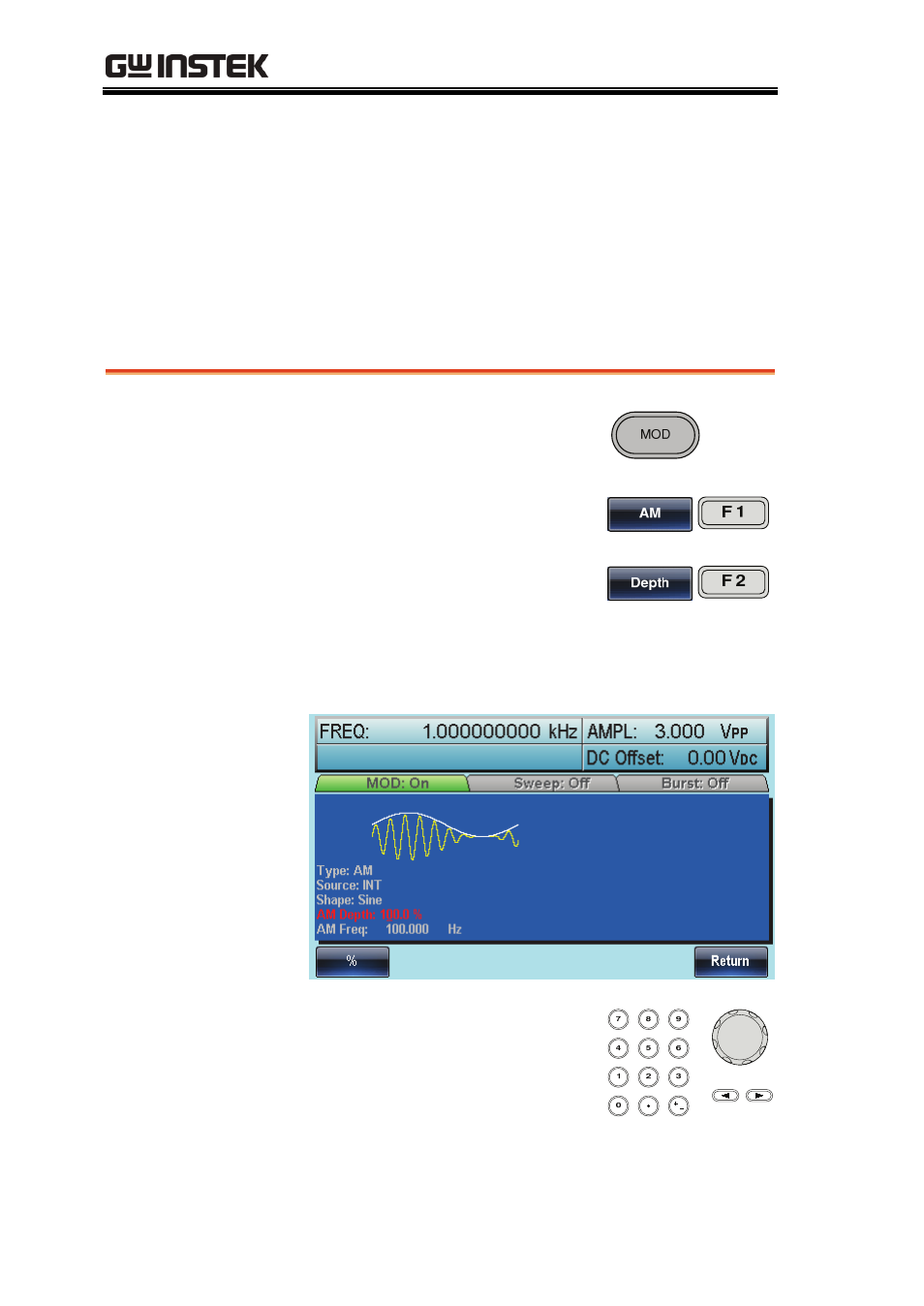

Panel Operation 1. Press the MOD key.
2. Press F1 (AM).
3. Press F2 (Depth).
4. The AM Depth parameter will become
highlighted in the waveform display area.
5. Use the selector keys and
scroll wheel or number pad
to enter the AM depth.
/
