Screen Capture
Background The function generator is able to capture screen
shots and save them to a USB flash drive.

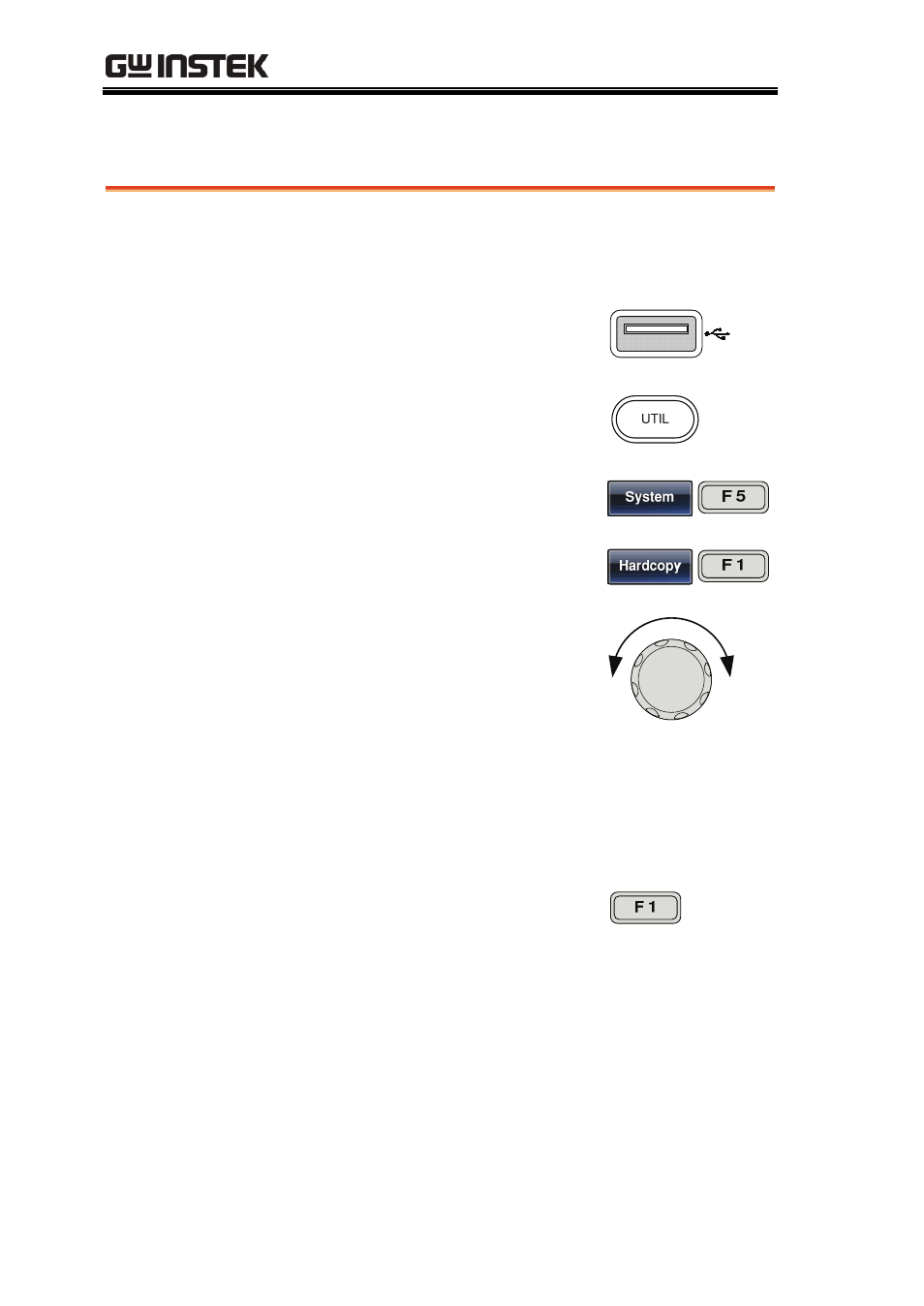

Connection 1. Insert a USB key into the
USB port on the front panel.
Panel Operation 2. Press the UTIL key.
3. Press F5 (System).
4. Press F1 (Hardcopy).
5. Use the scroll wheel to scroll
through the different screen
shots. A screen shot is
captured each time a
function is used.
Function: Waveform, ARB,
MOD (AM, FM, FSK,
PWM), Sweep, Burst, UTIL
6. When a screen is selected,
press F1 to save the screen
shot. The utility menu will
reappear after 2 seconds.
This indicates that the
screen shot was saved.
