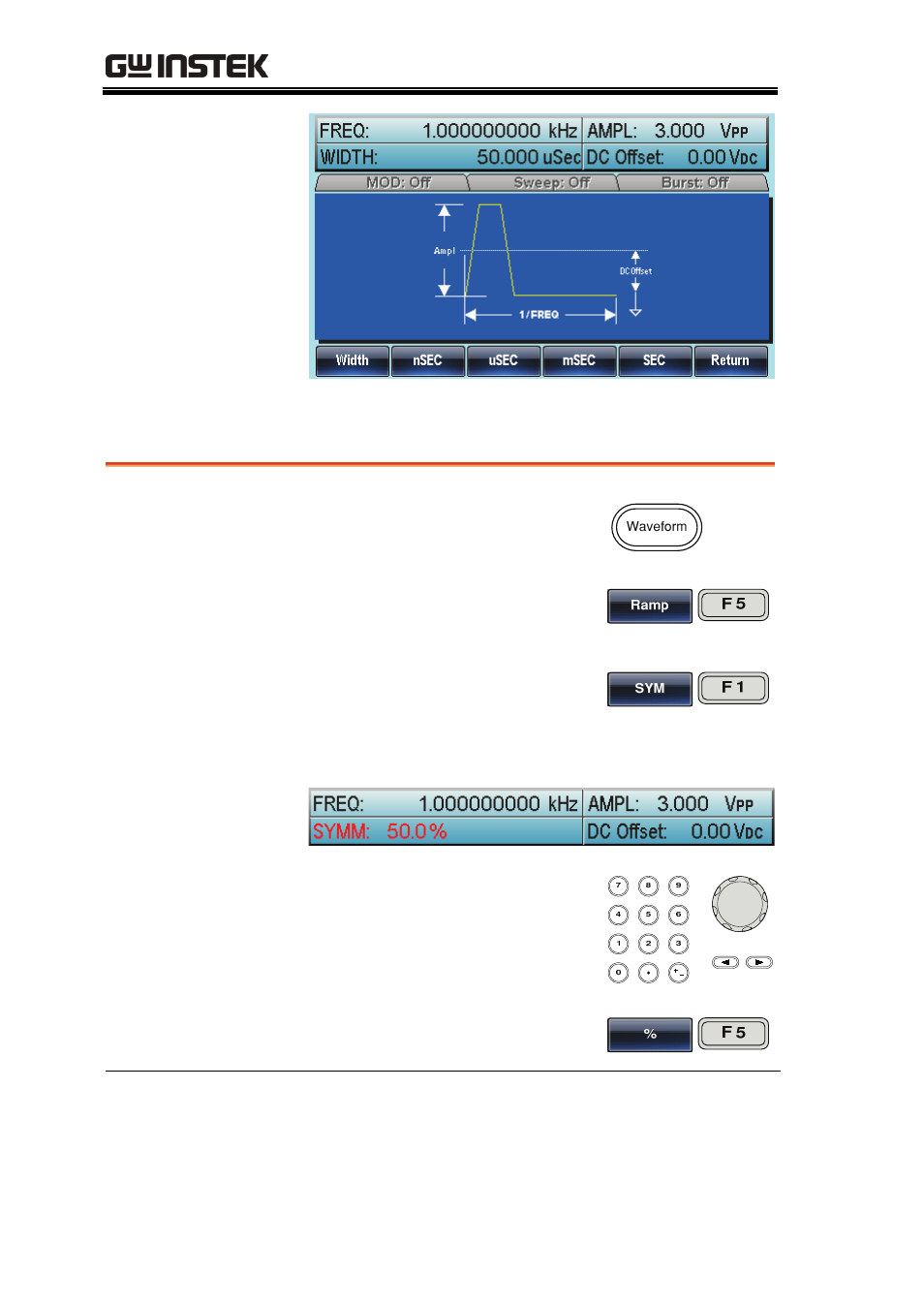

Setting a Ramp

Panel Operation

1. Press the Waveform key.

2. Press F5 (Ramp) to create a

ramp waveform.

3. Press F1 (SYM). The SYMM

parameter will be
highlighted in the
parameter window.

4. Use the selector keys and

scroll wheel or number pad
to enter the symmetry
percentage.

/

5. Press F5 (%) to choose %

units.

Range Symmetry 0%~100%
