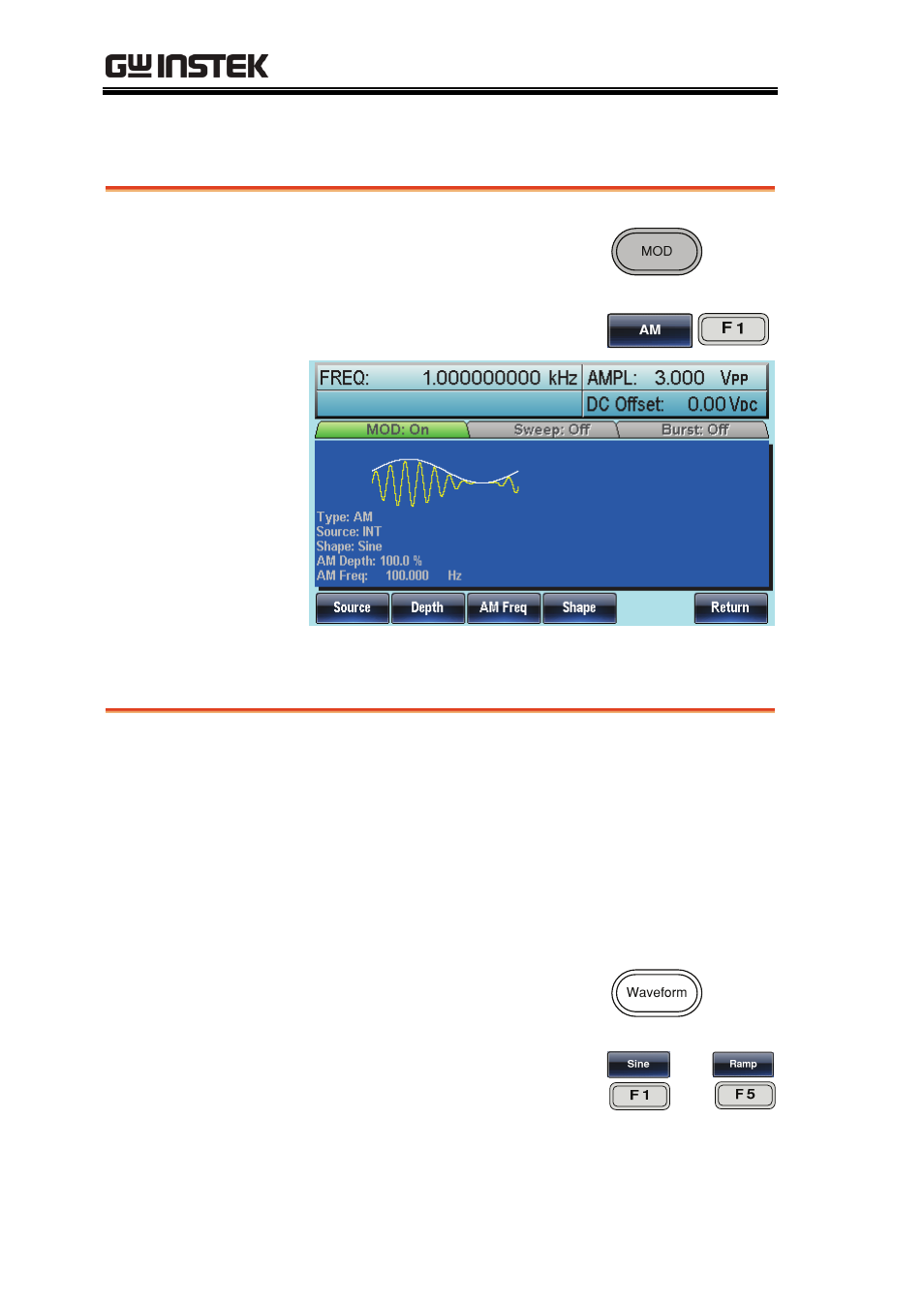

Selecting AM Modulation
Panel Operation
1. Press the MOD key.
2. Press F1 (AM).
AM Carrier Shape
Background
The shape function selects the AM carrier
waveform shape. Sine, square, triangle, ramp,
pulse or arbitrary waveforms can be used as the
carrier shape. The default waveform shape is set to
sine. Noise is not available as a carrier shape.
Before the carrier shape can be selected, choose
AM modulation mode, see page 28 or 70.
Select a Standard
Carrier Shape
1. Press the Waveform key.
2. Press F1~F5 to choose the
carrier wave shape.
~
