Selecting frequency modulation (fm), Fm carrier shape – GW Instek AFG-3000 Series User Manual
Page 76
AFG-3000 Series User Manual
76

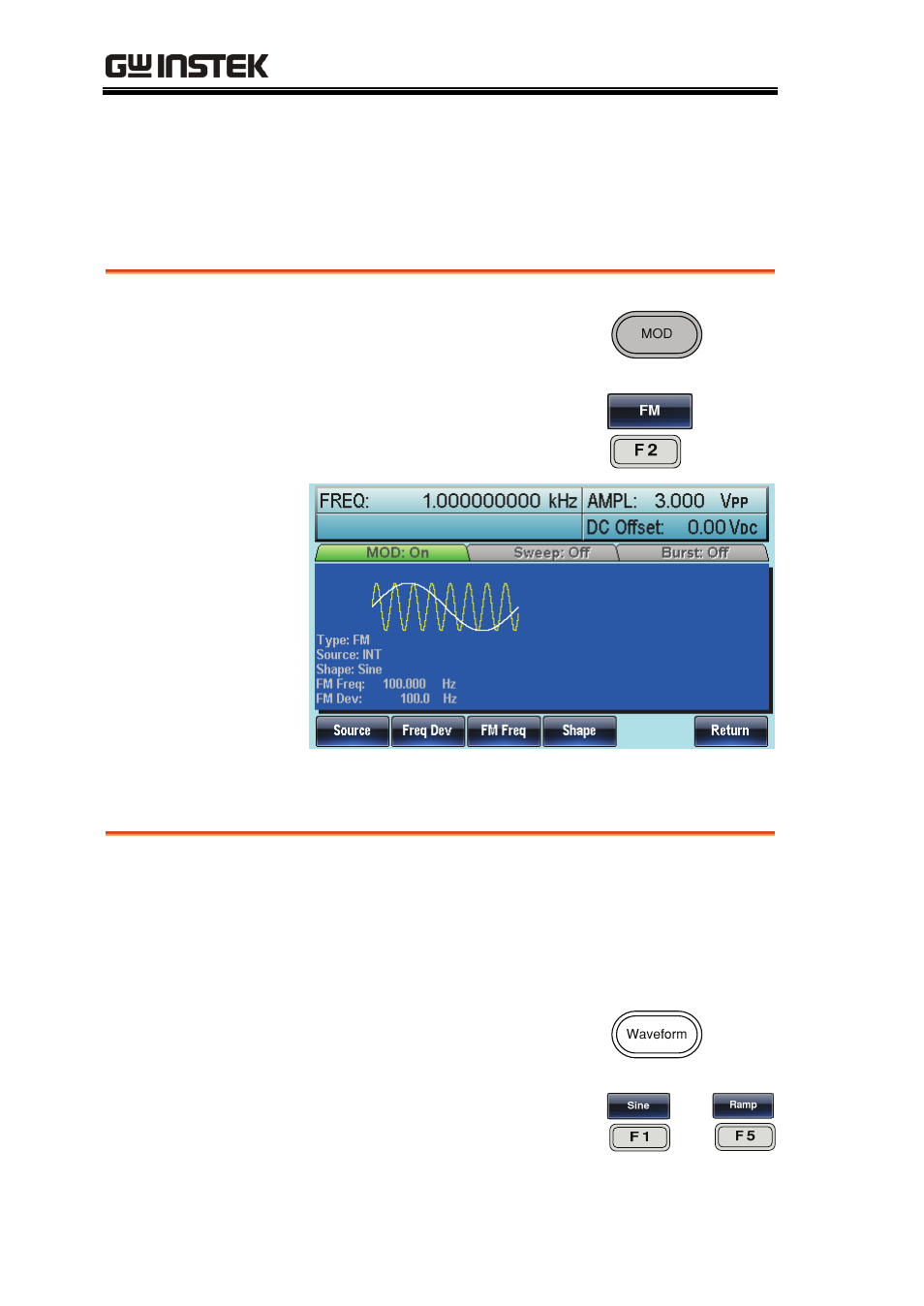

Selecting Frequency Modulation (FM)
When FM is selected, the modulated waveform depends on the
carrier frequency, the output amplitude and offset voltage.
Panel Operation
1. Press the MOD key.
2. Press F2 (FM).
FM Carrier Shape
Background
The Shape mode selects the FM carrier waveform
shape. The default waveform shape is set to sine.
Noise and Pulse waveforms cannot be used as a
carrier wave.
Panel Operation
1. Press the Waveform key.
2. Press F1~F5 to choose the
carrier wave shape. (bar F4)
~
