AFG-3000 Series User Manual
154
Setting the High
Point 10. Repeat steps 4~9 for High
(F2).
Setting the Center
Point 11. Repeat steps 4~9 for Length
(F3).
Zoom 12. To zoom in from the center
of the arbitrary waveform,
press F4 (Zoom In). The
Zoom In function will
reduce the length by half
each time the function is
used. The minimum
allowable vertical low is -2,
and the minimum vertical
high is 2.
13. To zoom out of the
waveform, press F5 (Zoom
out). The Zoom out function
will increase the length by 2.
The Vertical low maximum
can be set to -32767 and the
vertical high maximum can
be set to +32767.

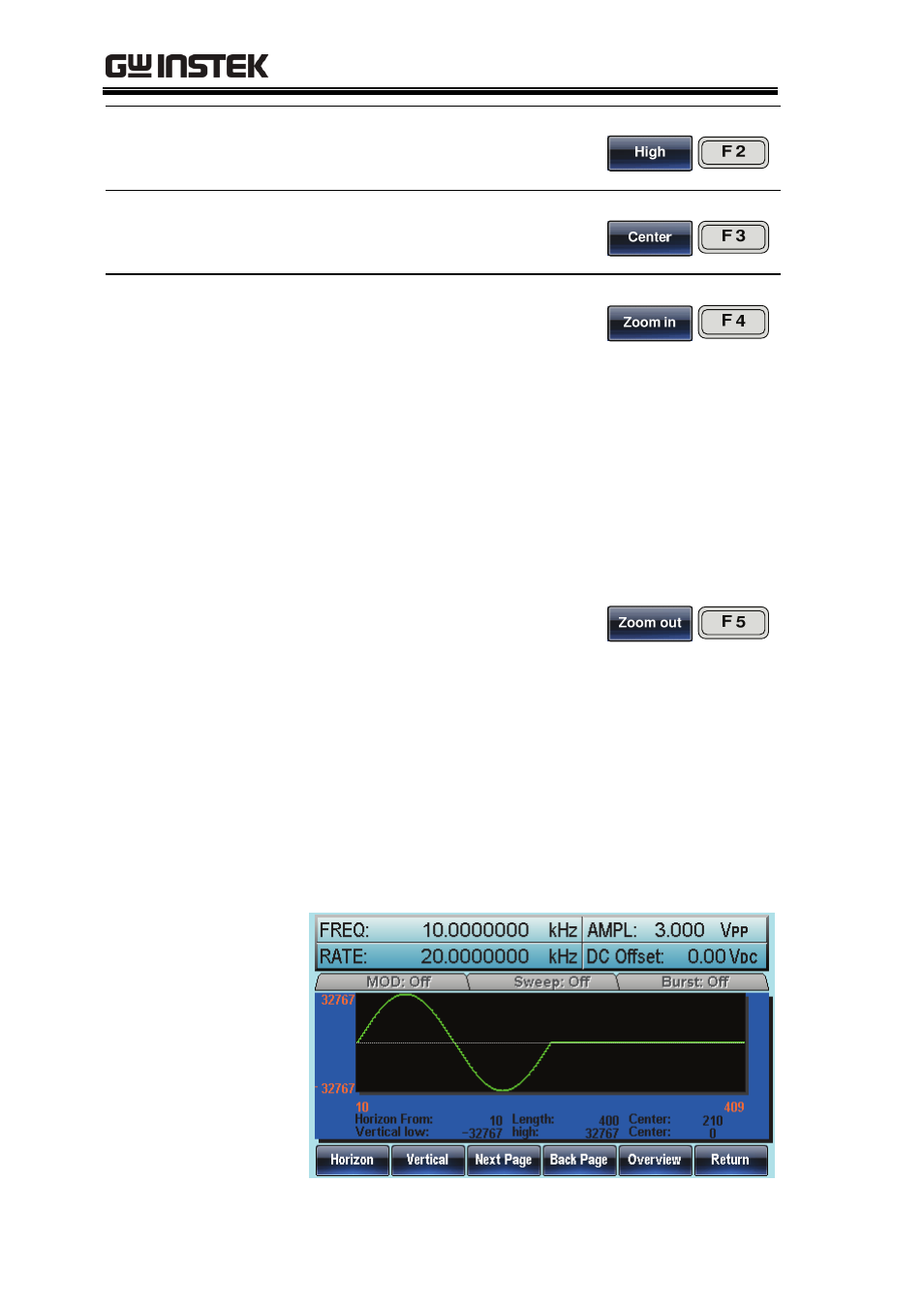

Below, the sine wave is with a vertical low of -32767, a
vertical high 32767 and a center of 0.
