ARBITRARY WAVEFORMS
145
11. Press F4 (Done) to complete
the operation.
12. Press F6 (Return) to return
to the previous menu.

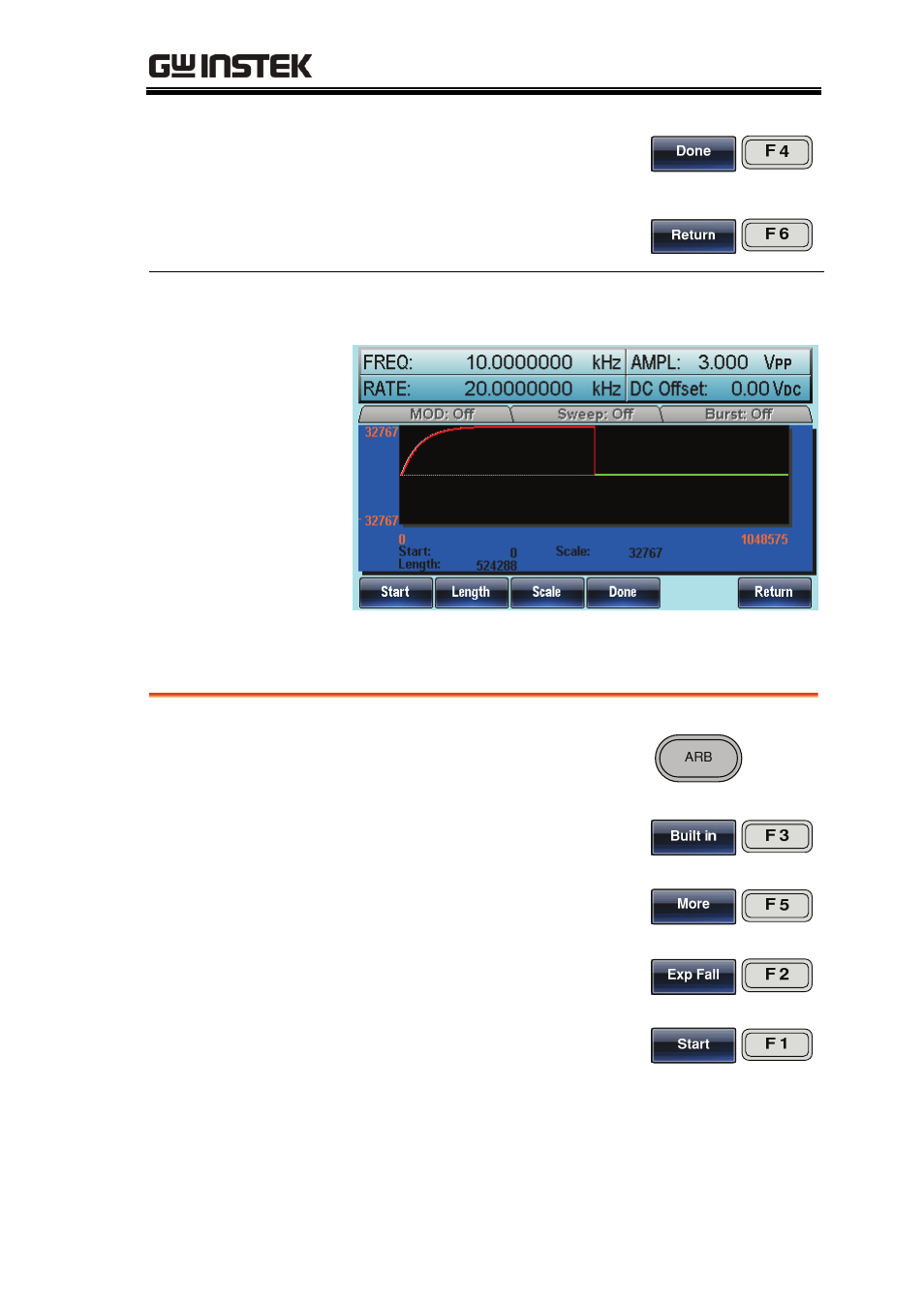

Below an exponential rise wave created at start:0,
Length: 524288, Scale: 32767
Creating an Exponential Fall Waveform
Panel Operation 1. Press the ARB key.
2. Press F3 (Built in).
3. Press F5 (More).
4. Press F2 (Exp Fall).
5. Press F1 (Start).
6. The Start property will become highlighted in
red.
