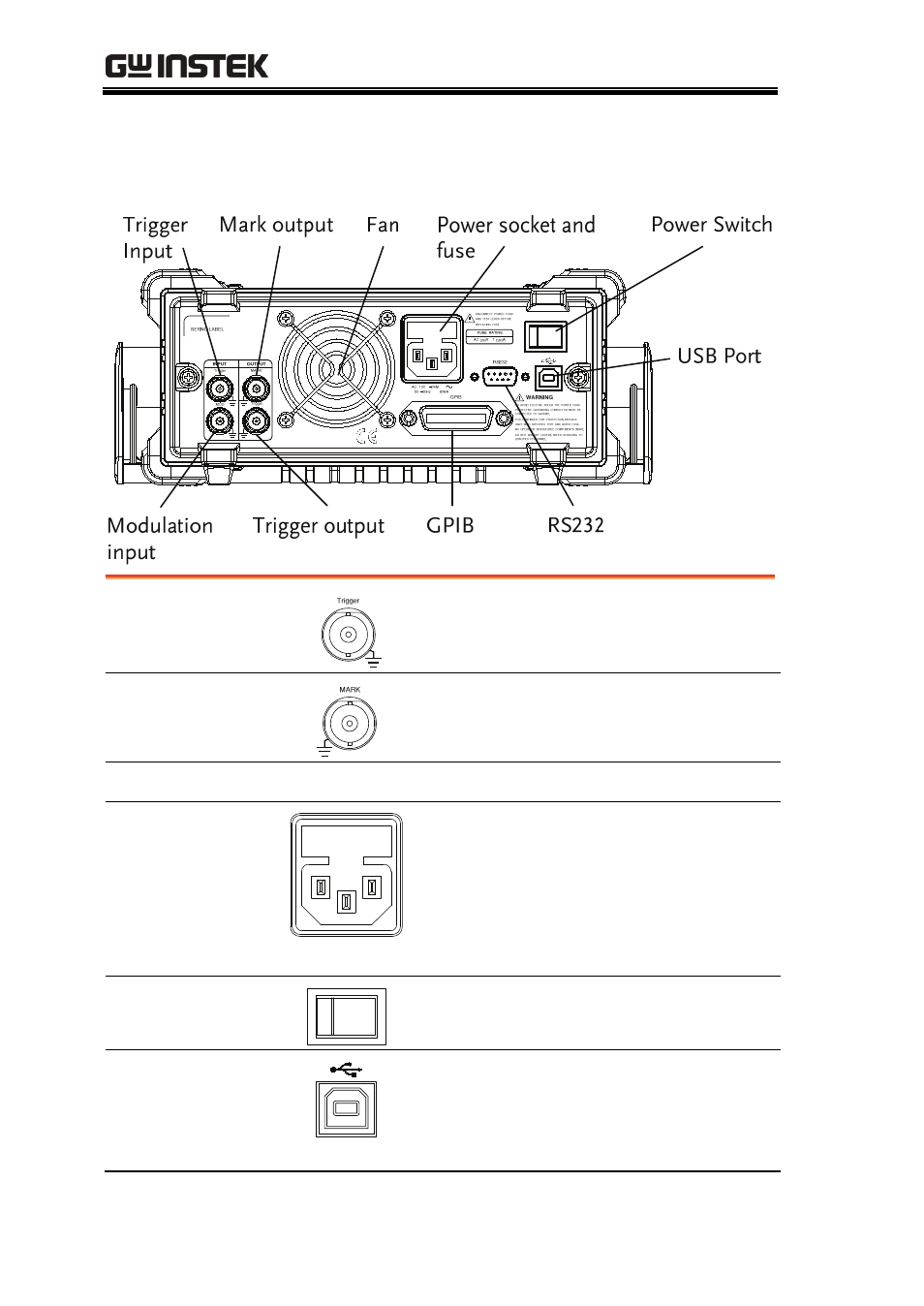

Rear Panel
Trigger input
External trigger input. Used to
receive external trigger signals.
MARK output
Mark output signal. Used for Sweep
and ARB mode only.
Fan
Power Socket
Input and fuse
Power input: 100~240V AC
50~60Hz.
Fuse: T0.63A/250V
For the fuse replacement procedure,
see page 295.
Power Switch
Main power switch.
USB port
The Mini-B type USB connector is
used to connect the function
generator to a PC for remote
control.
