AFG-3000 Series User Manual
70
Modulating Wave Shape
The function generator can accept internal as well as external
sources. The AFG-3000 has sine, square, triangle, up ramp and down
ramp modulating waveform shapes. Sine waves are the default
wave shape.

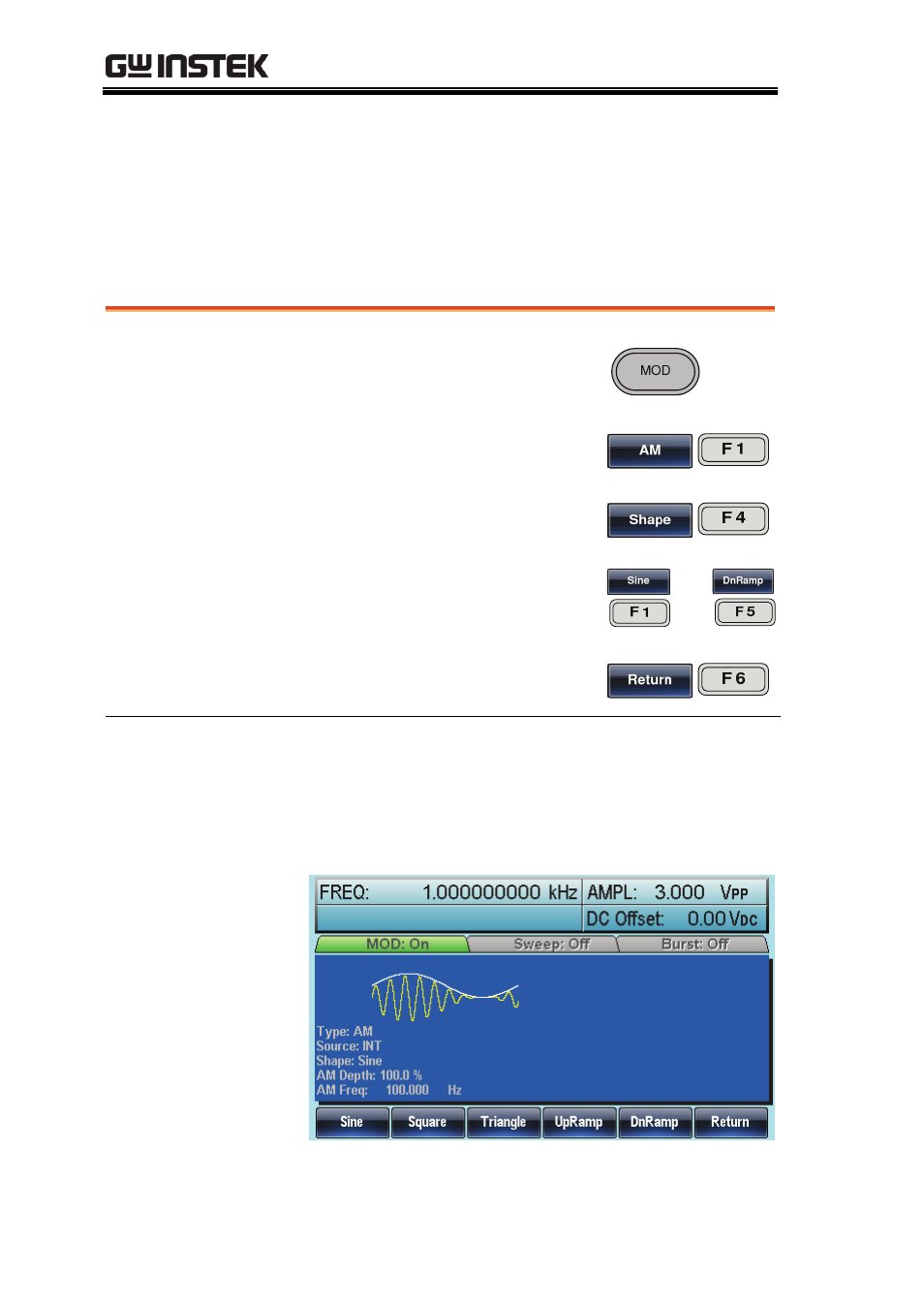

Panel Operation 1. Select MOD.
2. Press F1 (AM).
3. Press F4 (Shape).
4. Press F1~F5 to select the
waveform shape.
~
5. Press F6 (Return) to return
to the menu.
Note Square wave 50% Duty cycle
UpRamp 100% Symmetry
Triangle 50% Symmetry
DnRamp 0% Symmetry
