GETTING STARTED
15

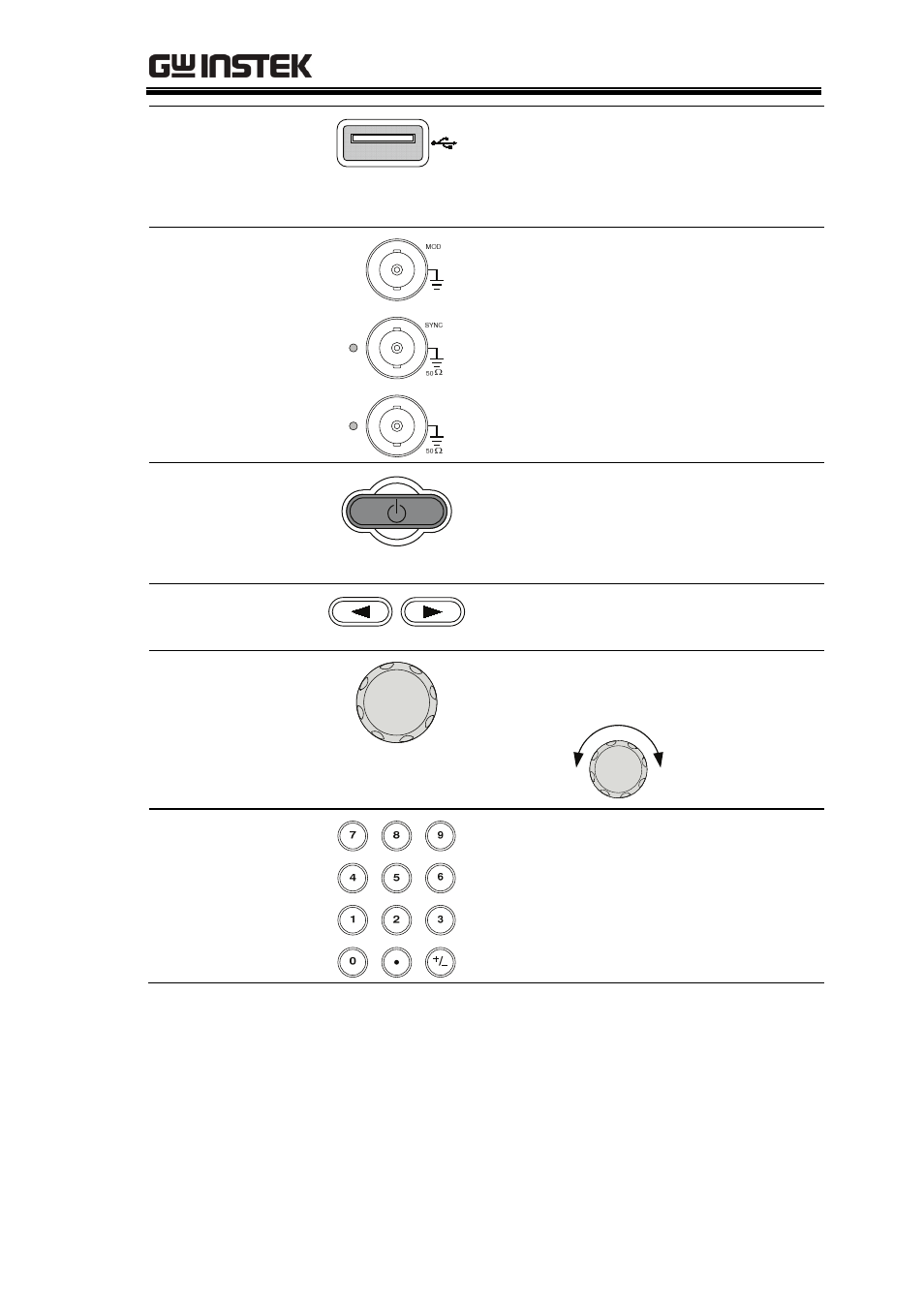

USB host
connector The USB Host connector is used
to save and restore waveform
data and images, as well as
update the firmware.
Output terminals Modulation output terminal.
The SYNC output terminal. 50Ω
output impedance.
The primary output terminal. 50Ω
output impedance.
Standby key The standby key is used to turn
the function generator on (green)
or to put the function generator
into standby mode (red).
Selection keys Used to select digits when editing
parameters.
Scroll Wheel The scroll wheel is used to edit
values and parameters.
Decrease Increase
Keypad The digital keypad is used to
enter values and parameters. The
keypad is often used in
conjunction with the selection
keys and variable knob.
