Creating an Exponential Rise Waveform

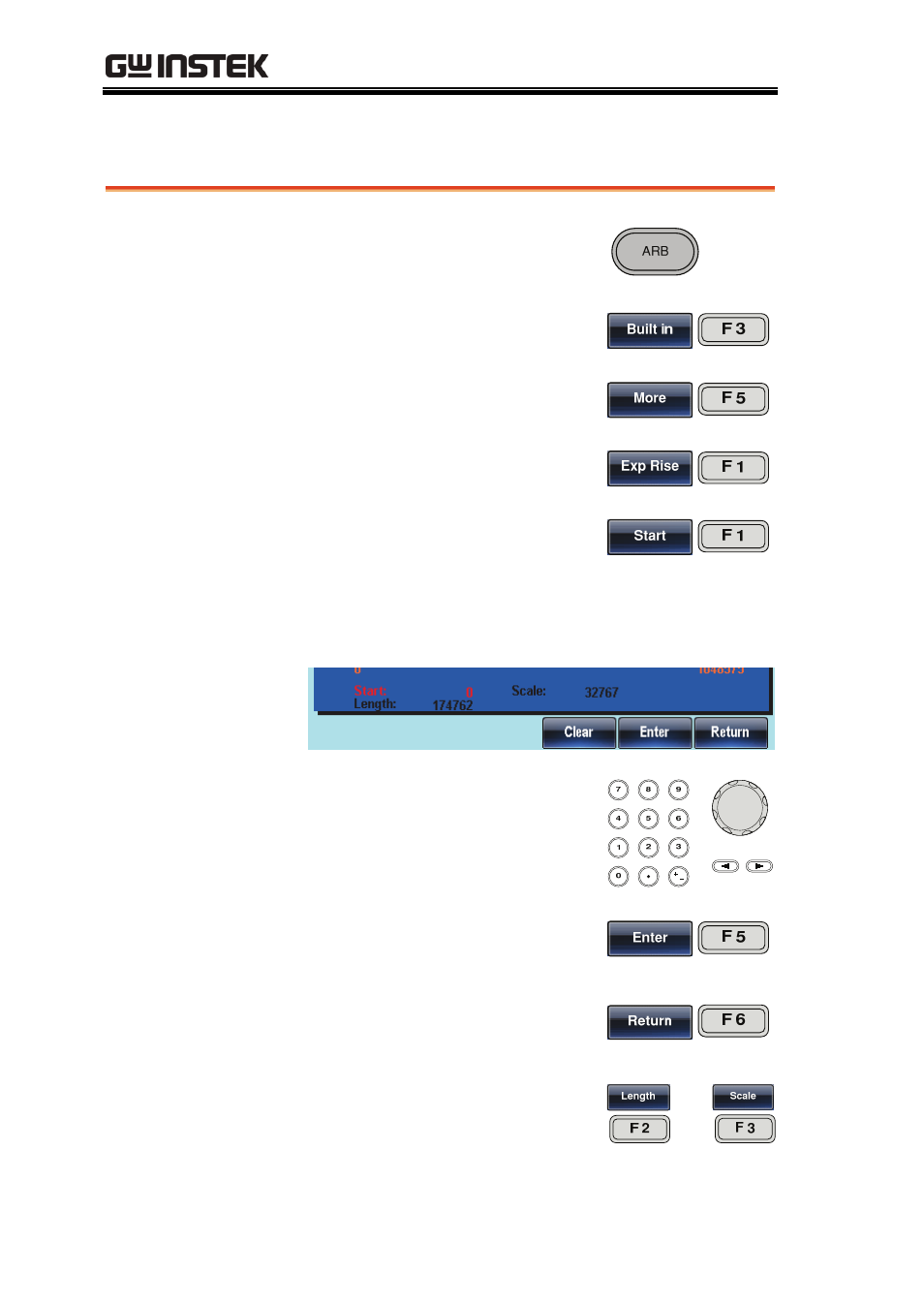

Panel Operation 1. Press the ARB key.
2. Press F3 (Built in).
3. Press F5 (More).
4. Press F1 (Exp Rise).
5. Press F1 (Start).
6. The Start property will become highlighted in
red.
7. Use the selector keys and
scroll wheel or number pad
to enter the Start address.
/
8. Press F5 (Enter) to confirm
the Start point.
9. Press F6 (Return) to return
to the previous menu.
10. Repeat steps 4~8 for Length
(F2) and Scale (F3).
~
