Setting a Square Wave

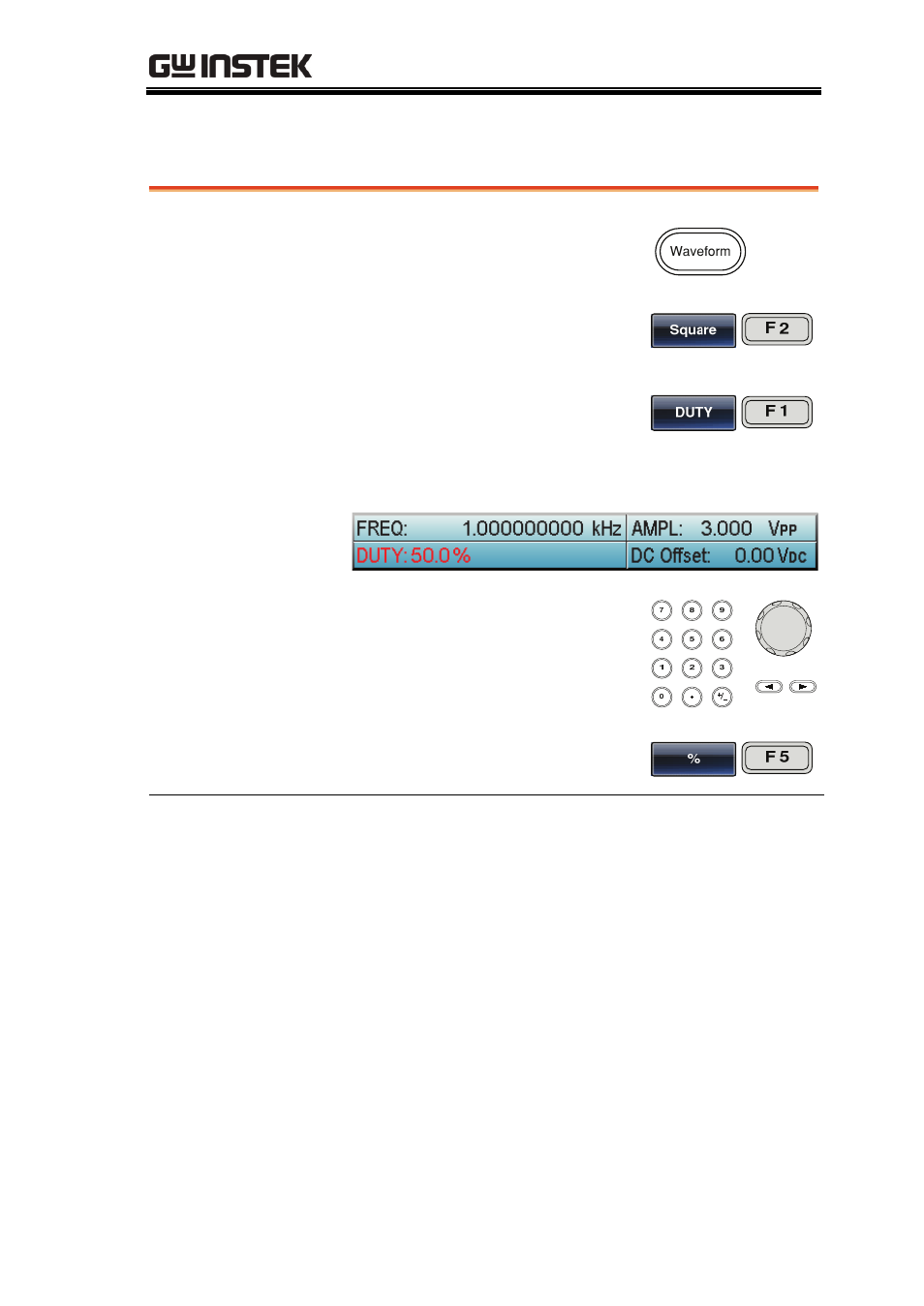

Panel Operation 1. Press the Waveform key.
2. Press F2 (Square) to create a
square waveform.
3. Press F1 (Duty). The Duty
parameter will be
highlighted in the
parameter window.
4. Use the selector keys and
scroll wheel or number pad
to enter the Duty range.
5. Press F5 (%) to choose %
units.
Range Frequency Duty Range
≤25MHz 20%~80%
25MHz~≤50MHz 40%~60%
>50MHz~80MHz 50% (Fixed)
