MODULATION
69
Select an
Arbitrary
Waveform Carrier
Shape. 3. See the Arbitrary waveform
quick guide or chapter to
use an arbitrary waveform.
Page 35
Page 137
Range AM Carrier Shape sine, square, triangle, upramp,
dnramp, arbitrary waveform
Carrier Frequency
The maximum carrier frequency depends on the carrier shape
selected. The default carrier frequency for all carrier shapes is 1kHz.

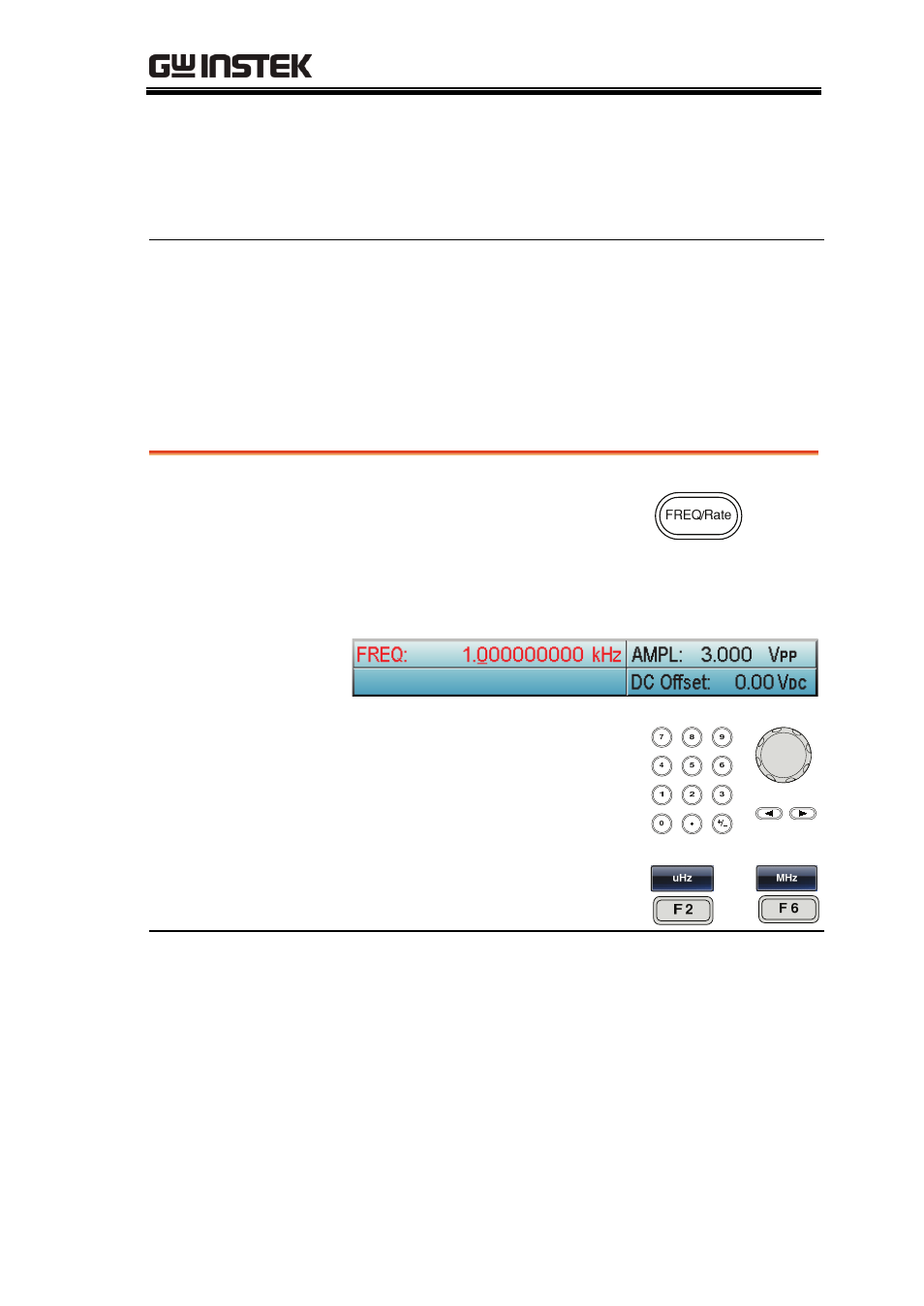

Panel Operation 1. With a carrier waveform,
press the FREQ/Rate key.
2. The FREQ parameter will become highlighted
in the parameter window.
3. Use the selector keys and
scroll wheel or number pad
to enter the carrier
frequency.
4. Press F2~F6 to select the
frequency range.
~
Range Carrier Shape Carrier Frequency
Sine 1μHz~80MHz(3081)/
50MHz(3051)
Square 1μHz~80MHz(3081)/
50MHz(3051)
Triangle 1μHz~1MHz
Pulse 500μHz~50MHz
Ramp 1μHz~1MHz
