OPERATION
59

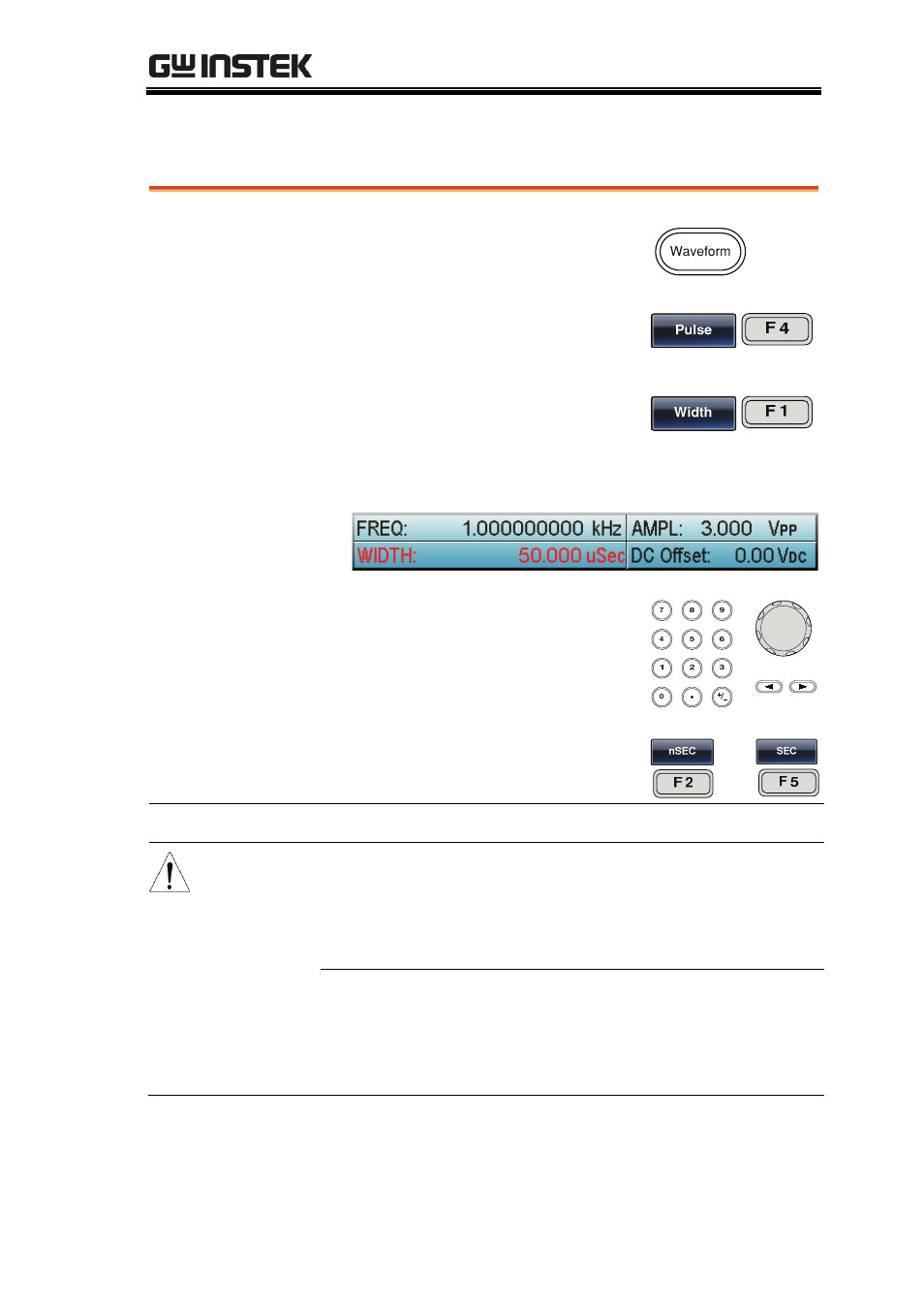

Setting the Pulse Width
Panel Operation 1. Press the Waveform key.
2. Press F4 (Pulse) to create a
pulse waveform.
3. Press F1 (Width). The Width
parameter will be
highlighted in the
parameter window.
4. Use the selector keys and
scroll wheel or number pad
to enter the pulse width.
5. Press F2~F5 choose the unit
range.
~
Range Pulse Width 8ns~1999.9s
Note
Minimum Pulse Width Freq ≤ 50MHz: 8ns pulse
width
Freq ≤ 6.25 MHZ: 5% duty
cycle
Resolution Freq ≤ 50MHz: 1ns pulse
width
Freq ≤ 6.25 MHZ: 1% duty
cycle
