Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
98 SierraFC M8‐4 Protocol Analyzer User Manual
VSAN Basic
VSAN‐Basic Link Service
Double‐click VSAN‐Basic Link Service in the Patterns Library panel to open the VSAN‐
Basic Link Service dialog to add any Type of VSAN‐Basic Link Service.

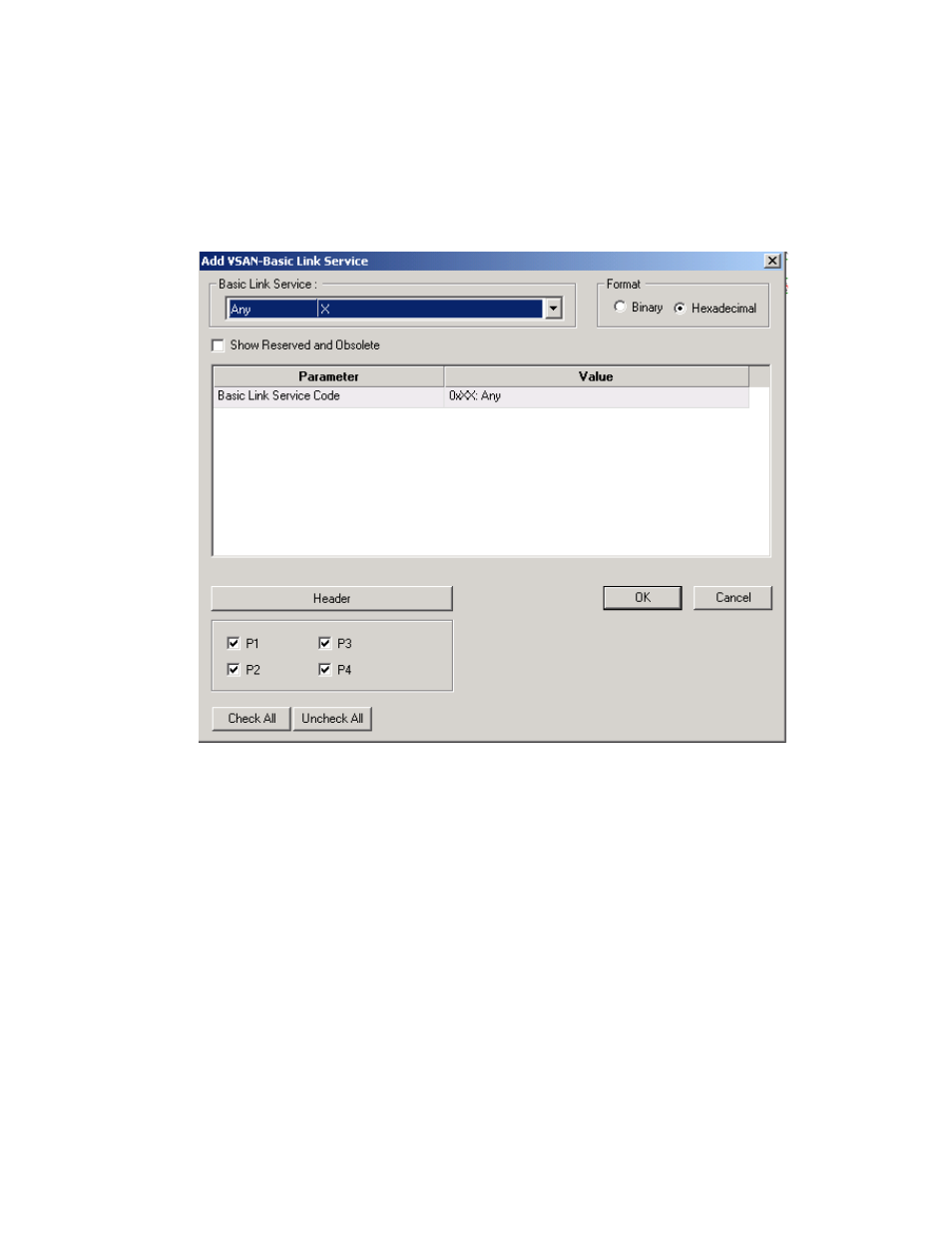

Figure 2.67: VSAN-Basic Link Service Dialog
The format can be Binary or Hexadecimal.
To select a VSAN‐Basic Link Service click the dropdown list which has the following
options:
 Any
 NOP
 ABTS
 BA_ACC
 BA_RJT
