Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
130 SierraFC M8‐4 Protocol Analyzer User Manual
Add VSAN‐FCAE‐1553 Data
Double‐click VSAN‐FCAE‐1553(Data) in the Patterns Library panel to open the VSAN‐
FCAE‐1553 Data dialog.

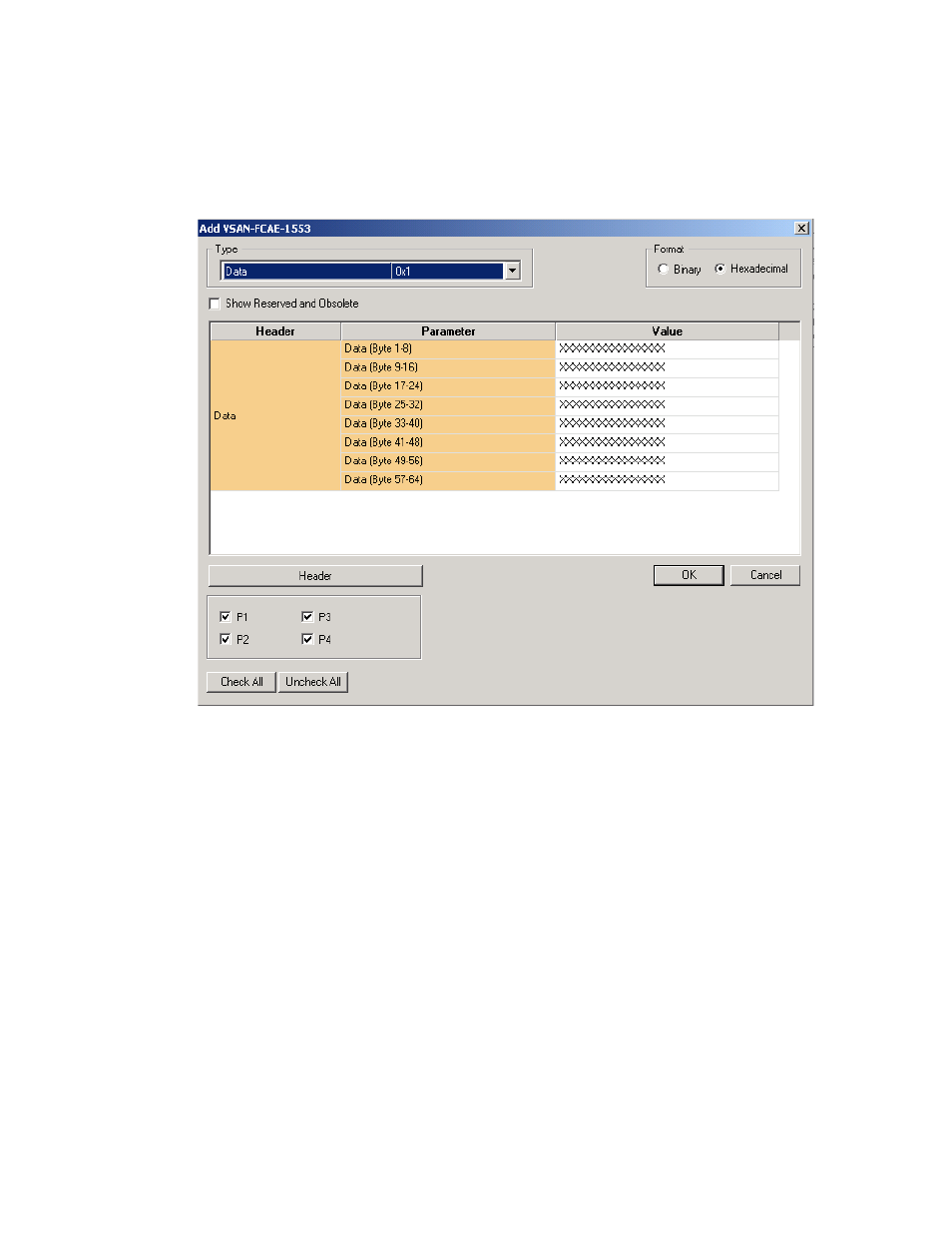

Figure 2.99: VSAN-FCAE-1553(Data) Dialog
The format can be Binary or Hexadecimal.
To select a Type click the dropdown list which has the following options:
 Any
 Data
 Command
 Status
