SierraFC M8‐4 Protocol Analyzer User Manual 153
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
Timeout
Selecting Timeout for the pattern opens the Add Timeout Pattern dialog.

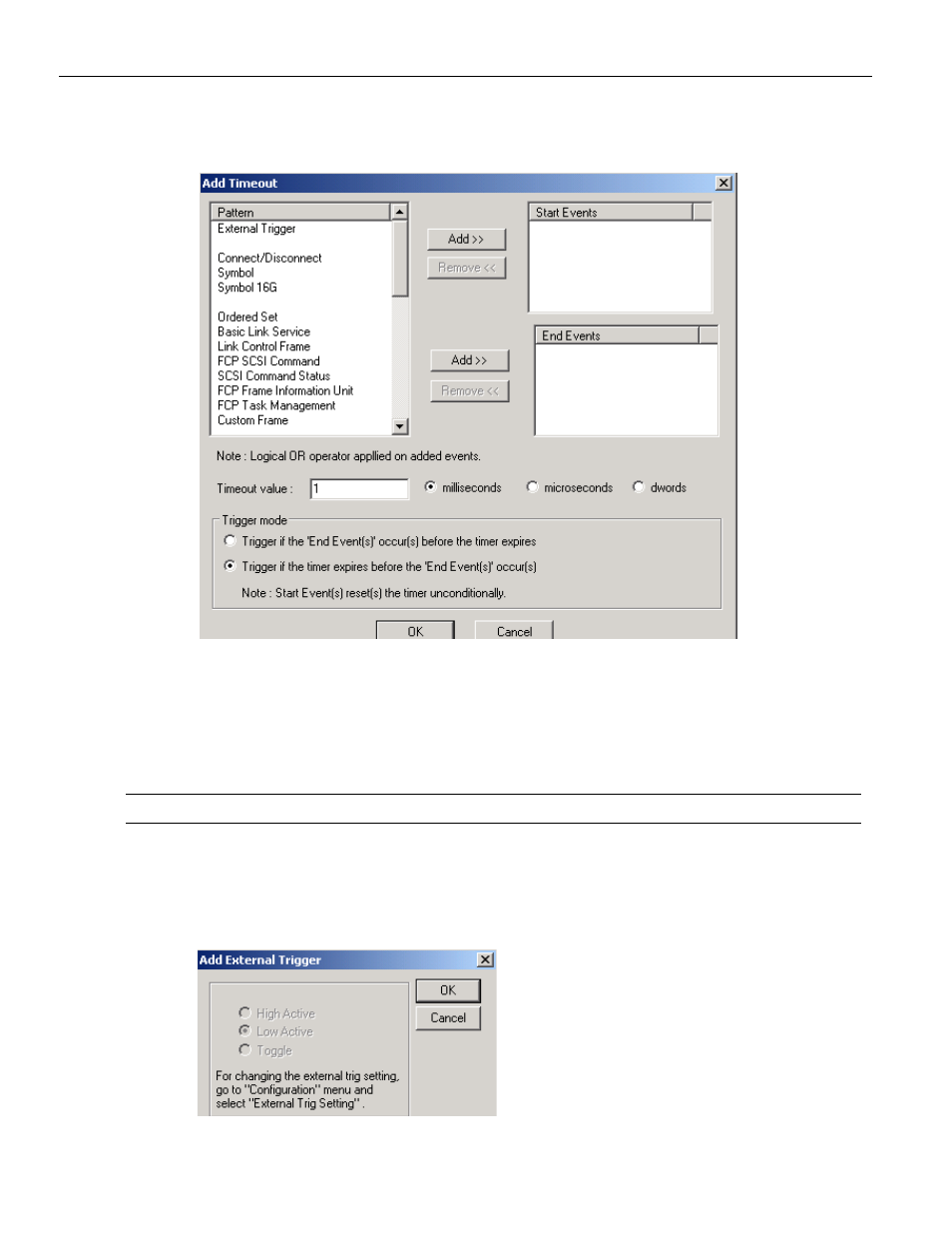

Figure 2.119: Add Timeout Pattern Dialog
Select a pattern for Start Events or End Events, enter a Timeout value, select units, and
then select Trigger Mode:
 Trigger If the ‘End Event(s)’ occur(s) before the timer expires
 Trigger if the timer expires before ‘End Event(s)’ occur(s)
Note: You cannot select a Timeout pattern if you select any other pattern as the trigger condition.
External Trigger Pattern
You can trigger on an external trigger. To set up the trigger, click the External Trigger
pattern. In order to select an External Trigger refer to the
“External Trig Setting” on
page 245 .
Figure 2.120: Add External Trigger Pattern Dialog
