SierraFC M8‐4 Protocol Analyzer User Manual 23
Expandability Teledyne LeCroy

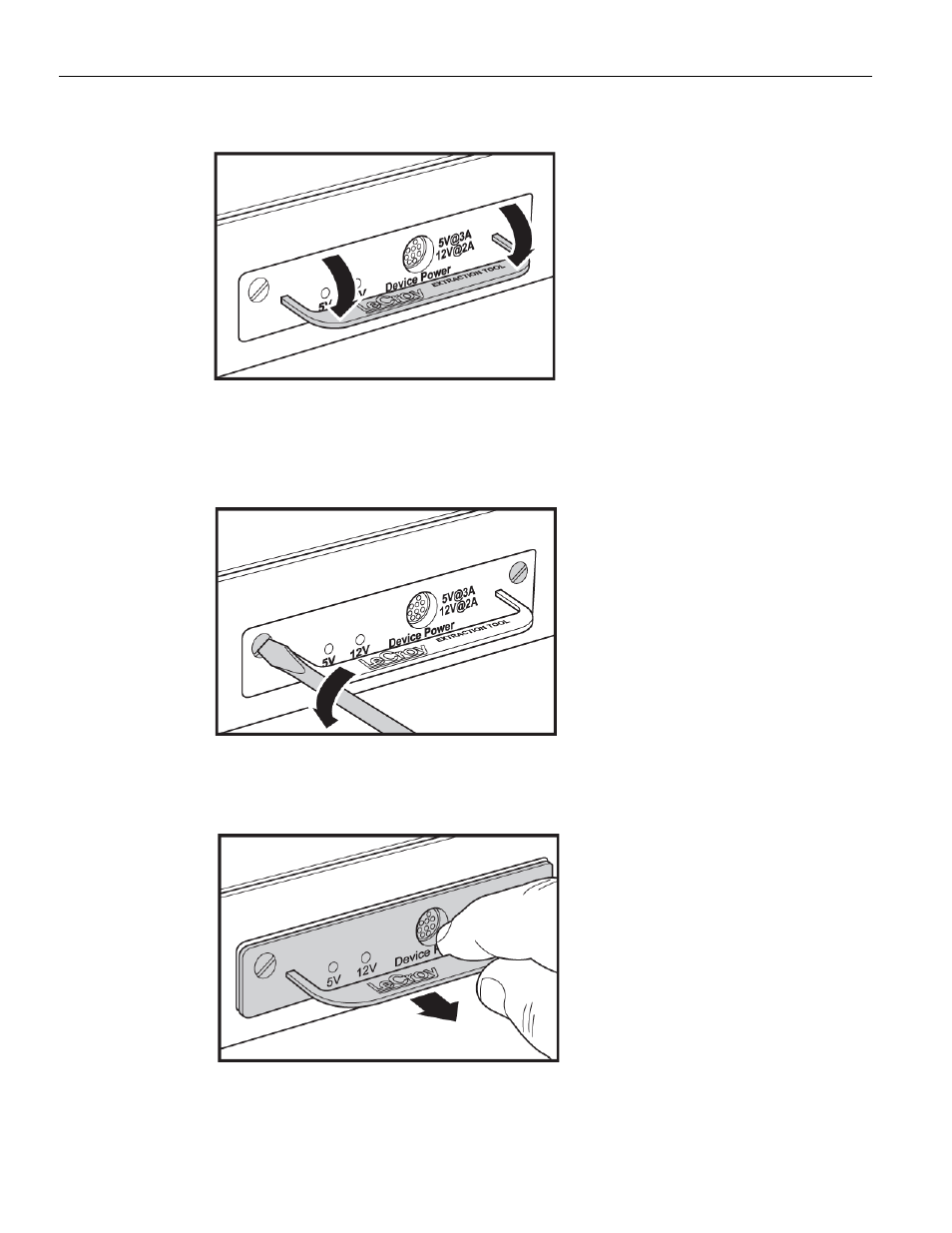

4. Using the screwdriver, loosen both retaining screws by rotating them counter‐
clockwise approximately two full turns, until feeling slight resistance. Do not force
the retaining screws after two turns.
5. Using the extraction tool as a handle, gently wriggle the expansion card forward
about 1/8”.
6. Repeat steps 4 and 5 approximately three times, until the card is free from the
retaining screws and you can remove the card from the system.
