Teledyne LeCroy Statistical Report
206 SierraFC M8‐4 Protocol Analyzer User Manual
SCSI Commands Report
To display the SCSI Command Report, click the SCSI Command tab. The SCSI Command
Report displays data shown in the screen capture below. The following information is
displayed in this report:
 Port: The ports that are selected
 Source ID
 Destination ID
 Type: All, Custom, Report LUNs, Inquiry, Read Capacity (10), Read (10), Mode
Sense (6)
 Payload Size: All, Custom, or a number of Dwords
 Seq No: All, Custom and other
 Status: All, Custom, Good, Check Condition
 Duration: All, Custom and other
 Count: All, Custom, or a number
 %: of total count

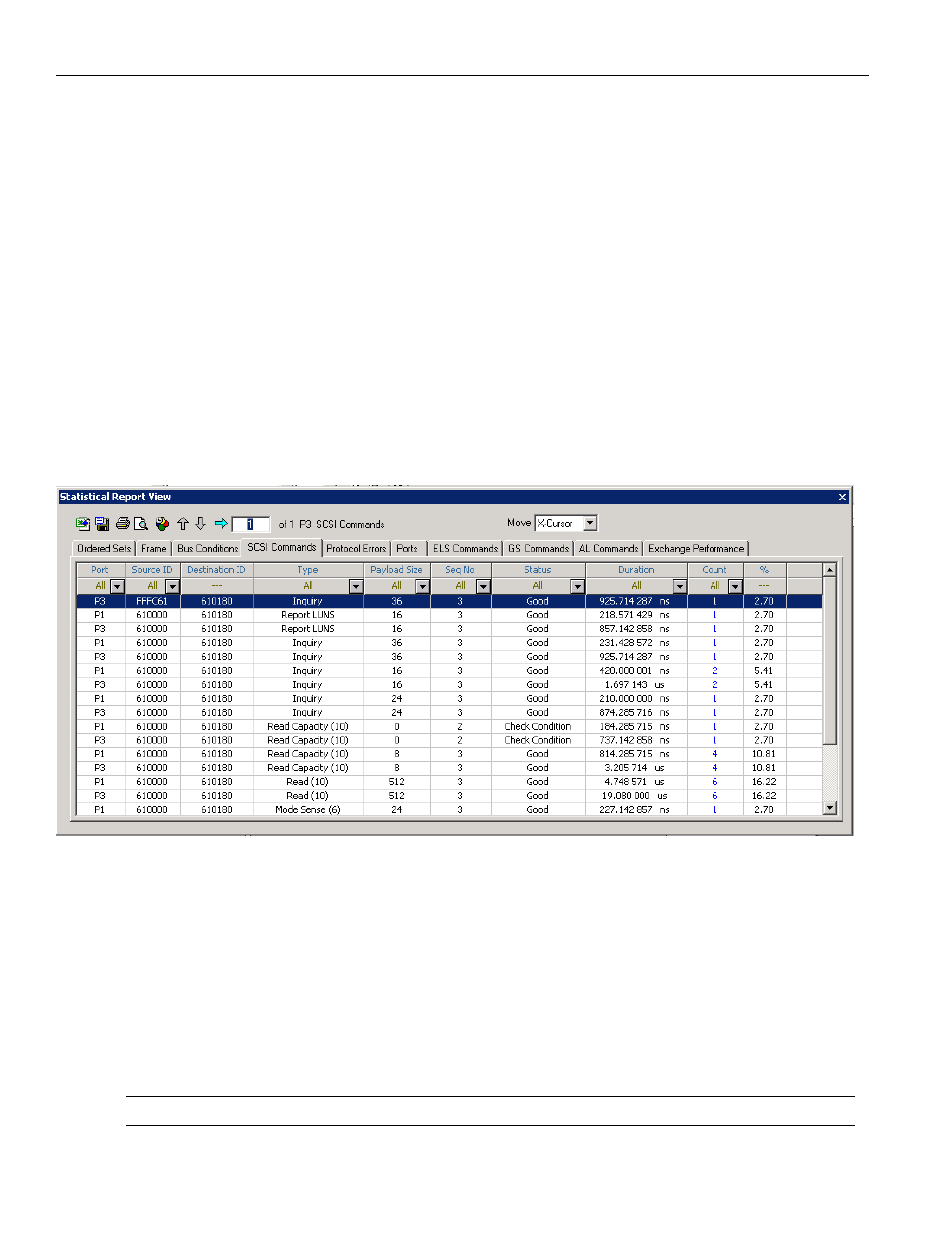

Figure 3.35: SCSI Command Report
Protocol Errors Report
To display the Protocol Errors Report, click the Protocol Errors tab.The Protocol Errors
Report displays the protocol error data (see
Figure 3.36 on page 207 ). The following
information is displayed in this report:
 Port: The ports that are selected
 Type: All, Custom, Symbol Violation, Disparity Error, Primitive Error
 Count: All, Custom, or other
 %: of total count
Note: The Protocol Errors tab appears only if there are any protocol errors in the trace.
