The Event Properties dialog box appears.
4. In the Type column on the left, choose Timer. Set the timer for random timing with a
maximum time limit of 1.790 seconds.
5. Click OK to close the Event Properties dialog box.
6. Click the prompt to add an action to correspond with the second Event.
The Action Properties dialog box appears.
7. In the Type list on the left, choose Stop Scenario as the Action that you want after
the timer has expired.
8. Click OK to close the Action Properties dialog box.

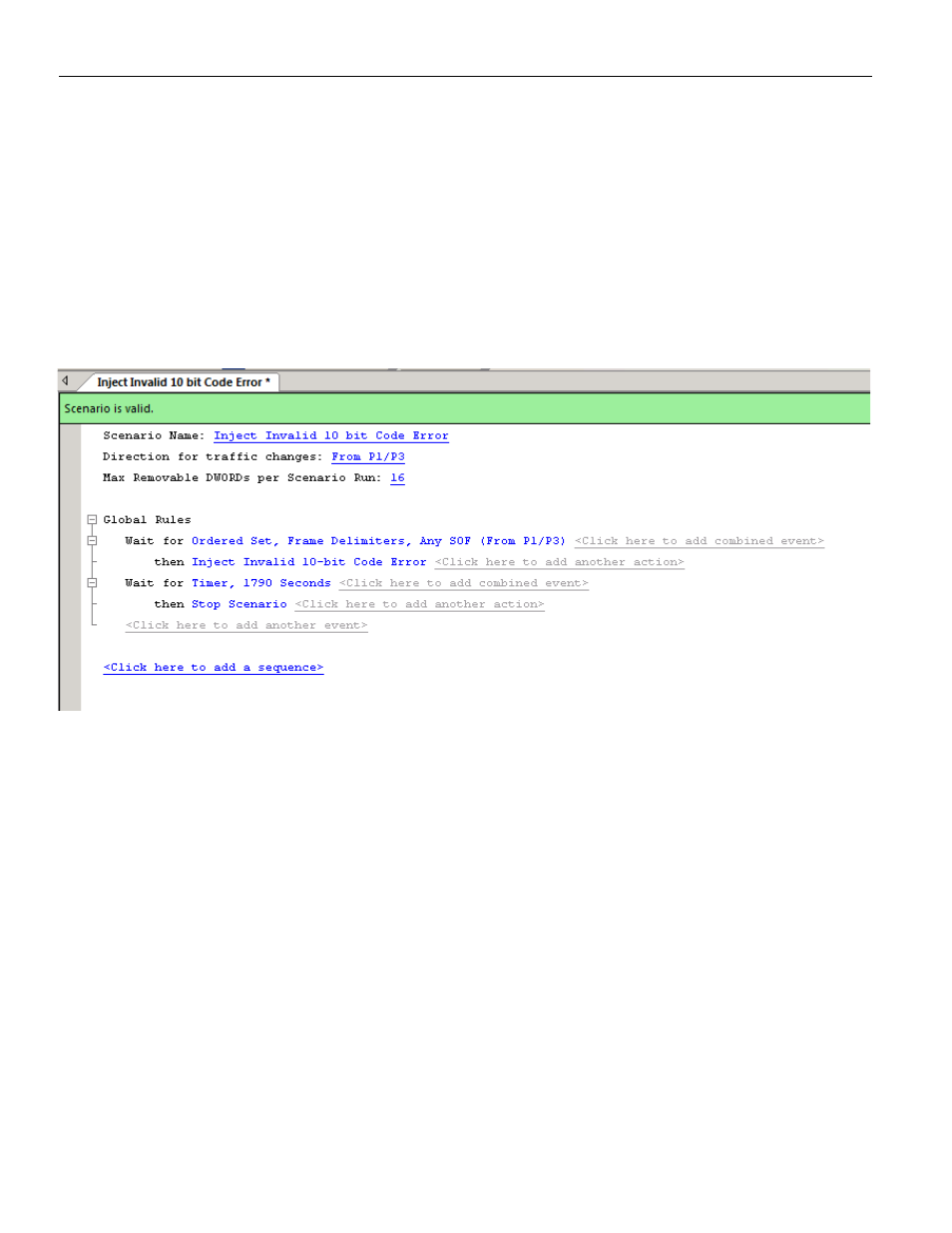

Figure 4.30: Example 3: Setting the Timer
9. In the File menu, select Save Scenario to save the Scenario.
Sequence Creation
A sequence can have multiple states, but only one state is active at any time. In other
words, at any point in time, a sequence “waits” for one Event (or Combined Event) and
responds with the corresponding Action or set of Actions when the Event occurs.
A sequence is more powerful than Global Rules, because you can create branching or
looping test logic with a sequence.You can include up to two sequences in a Scenario, but
each is completely independent of the other. There is no branching or other interaction
between the two, except through the Restart All Sequences Action.
