SierraFC M8‐4 Protocol Analyzer User Manual 249
Setup IP Teledyne LeCroy
Note: If you are not connected to the device using USB, the Configuration menu does not have the
Setup IP command.
The IP Setting dialog displays. For IP Mode, two radio buttons are available: 
Static IP and DHCP. DHCP is the default.

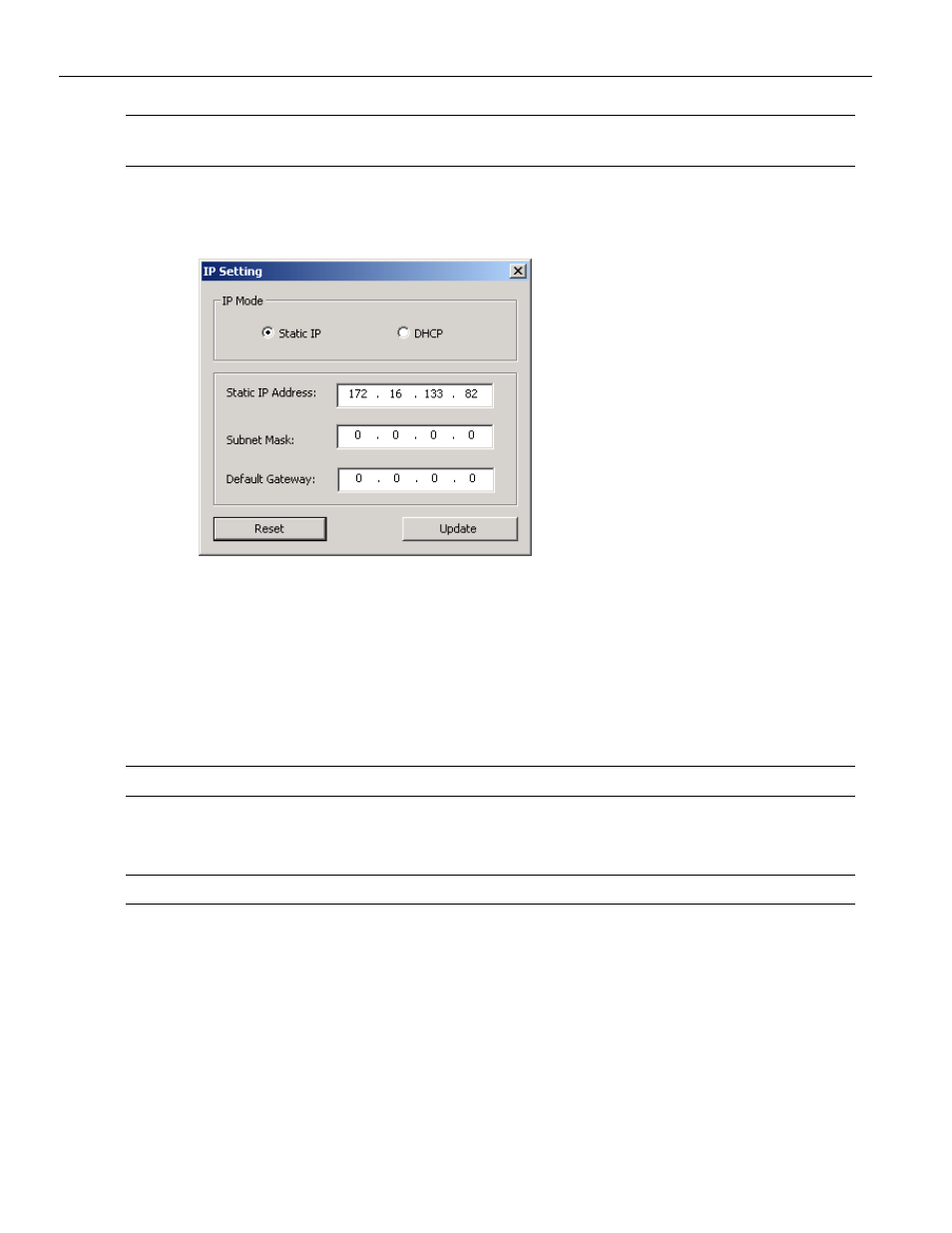

Figure 3.84: Static IP Setup Dialog
Static Configurations
Within static configurations, SierraFC M8‐4 must be manually programmed with an IP
address, Subnet Mask and a default GATEWAY.
Once the SierraFC M8‐4 has been programmed with the static network configuration, it
will broadcast a UDP message on its own subnet stating that is on line and available for
connection.
Note: This broadcast is only on the subnet that includes the SierraFC M8‐4 System.
When the application is started on the host machine, it will broadcast a UDP message on
its own subnet asking all SierraFC M8‐4s available to identify themselves.
Note:
This broadcast is only on the host machine’s subnet.
If the host machine and the SierraFC M8‐4 System reside on the same subnet, they will
see each other’s broadcasts and the application will automatically populate the Select
Device list.
2. To change to Static IP, click the Static IP radio button.
Enter the Static IP Address.
Enter the Subnet Mask.
Click Update.
The system displays a warning message.
