SierraFC M8‐4 Protocol Analyzer User Manual 291
Settings in Advanced Mode Teledyne LeCroy

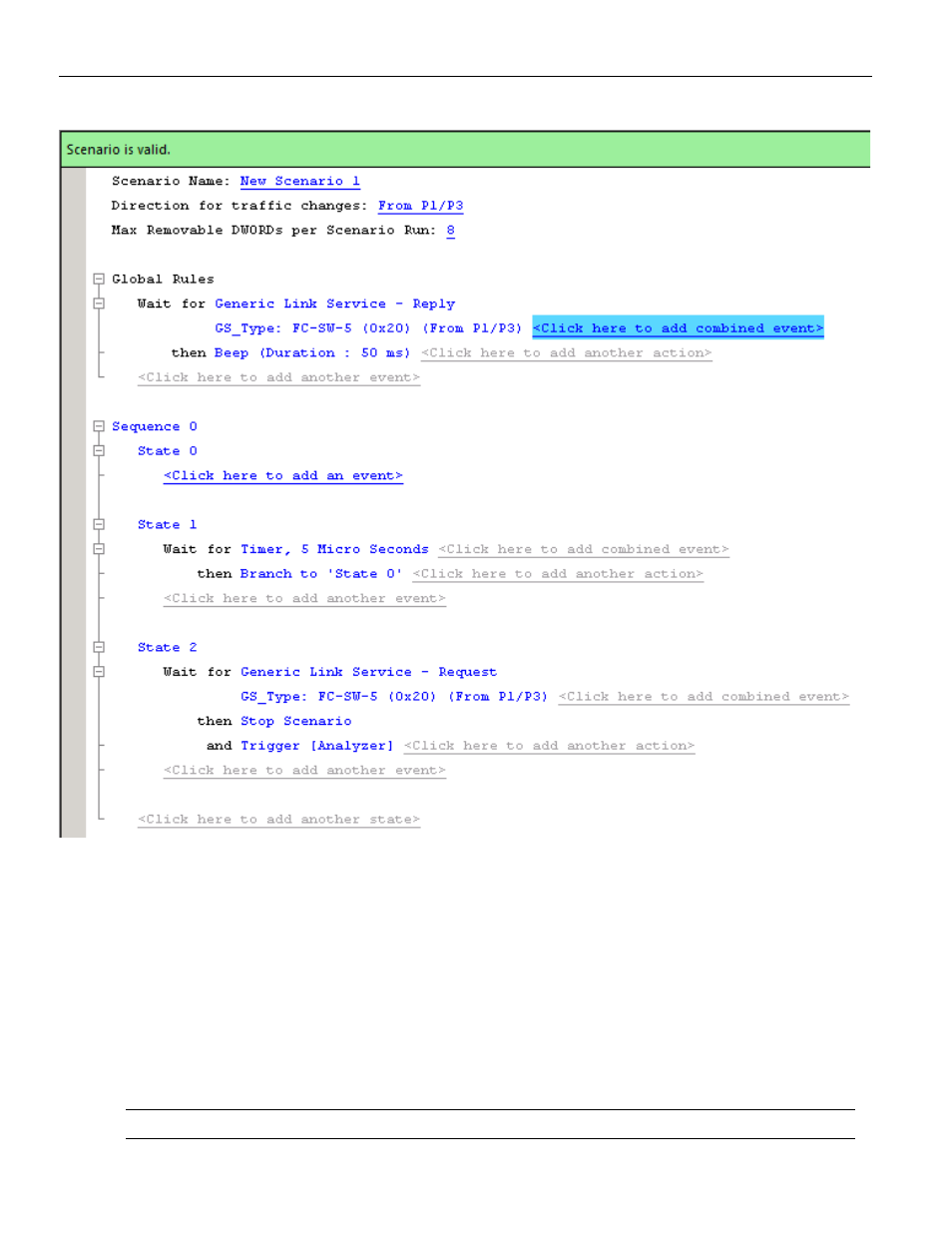

Figure 4.15: Global Rules and Sequence Areas of a Scenario
FC InFusion hardware provides the capacity to have up to two sequences co‐existing in a
Scenario in addition to the Global Rules. Recall that both the Global Rules and any
sequences are active at all times. Each is a separate “state machine,” having the behavior
of a particular test state at any point in time. Because the Global Rules has the capacity
for only one state, you can view it as a “degenerative state machine.”
Scenario Libraries
You can create any number of Scenarios, which you then can archive on your PC hard
drive. Libraries are windows that hold Scenarios.
Note:
Each library is a separate *.ifc file.
