Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
76 SierraFC M8‐4 Protocol Analyzer User Manual
FCAE‐1553 Any
Double‐click FCAE‐1553(Any) in the Patterns Library panel to open the FCAE‐1553 dialog
to add any Type of FCAE‐1553.

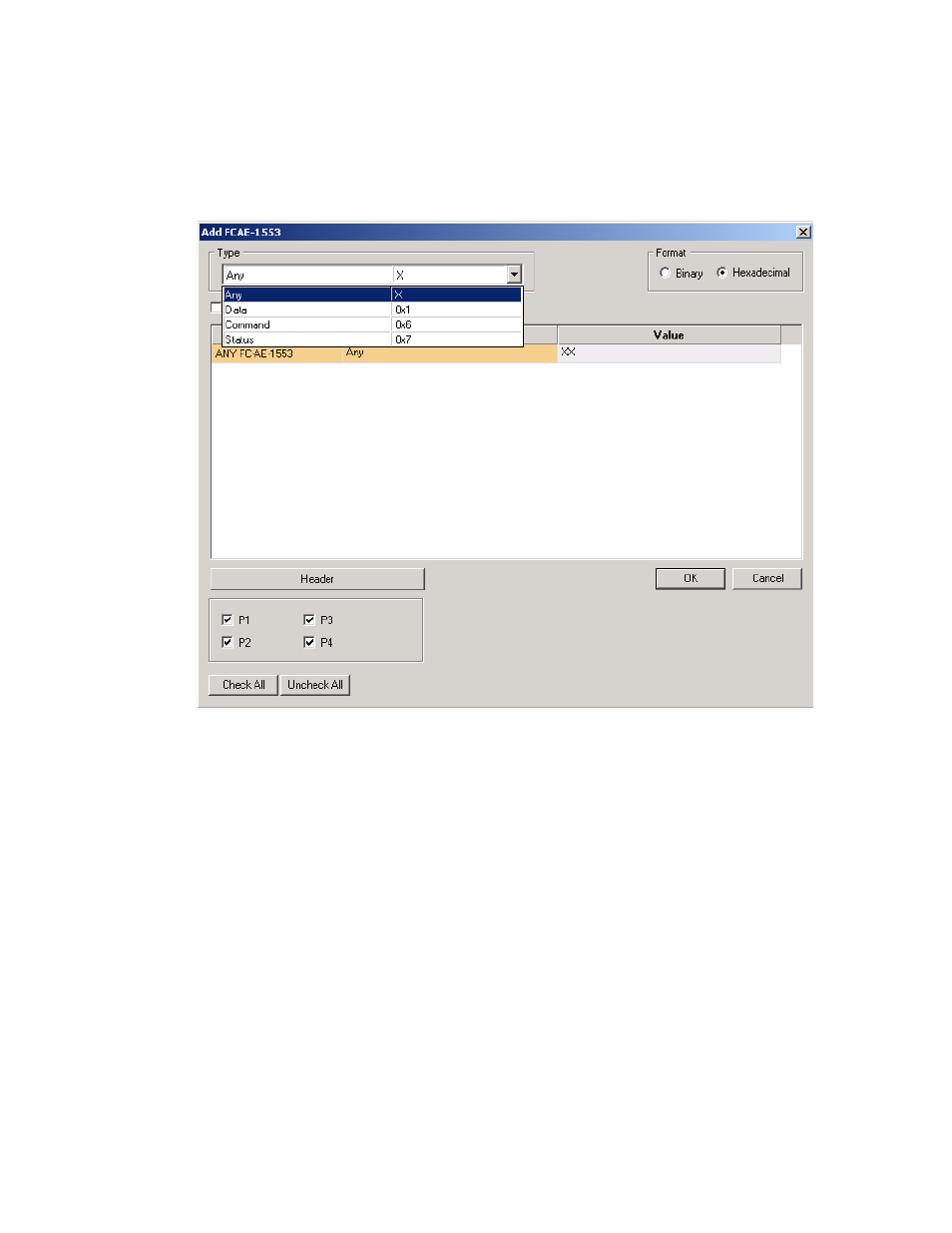

Figure 2.45: FCAE-1553 (Any) Dialog
The format can be Binary or Hexadecimal.
To select a Type click the dropdown list which has the following options:
 Any
 Data
 Command
 Status
