SierraFC M8‐4 Protocol Analyzer User Manual 117
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
Add VSAN‐FICON Command
Double‐click VSAN‐FICON(Command) in the Patterns Library panel to open the VSAN‐
FICON Command dialog.

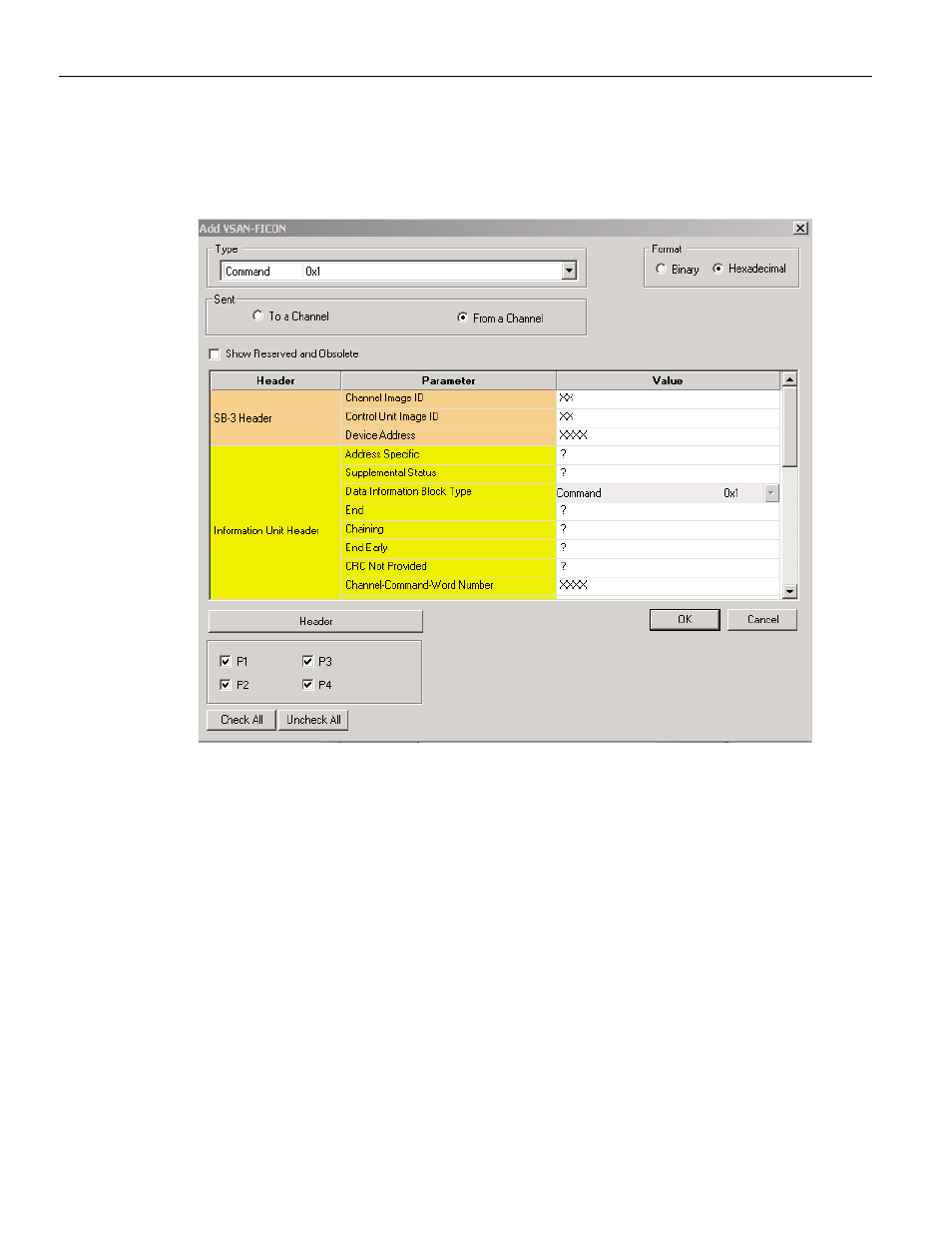

Figure 2.86: VSAN-FICON (Command) Dialog
The format can be Binary or Hexadecimal.
To select a Type click the dropdown list which has the following options:
 Any
 Data
 Command
 Status
 Control
 Command and Data
 Link Control
