196 SierraFC M8‐4 Protocol Analyzer User Manual
Toolbars
Enabling Tool Bars
To customize the Viewer Display workspace, you can enable and reposition the available
toolbars. To display or hide toolbars, select View > Toolbars, then check or uncheck
toolbars.

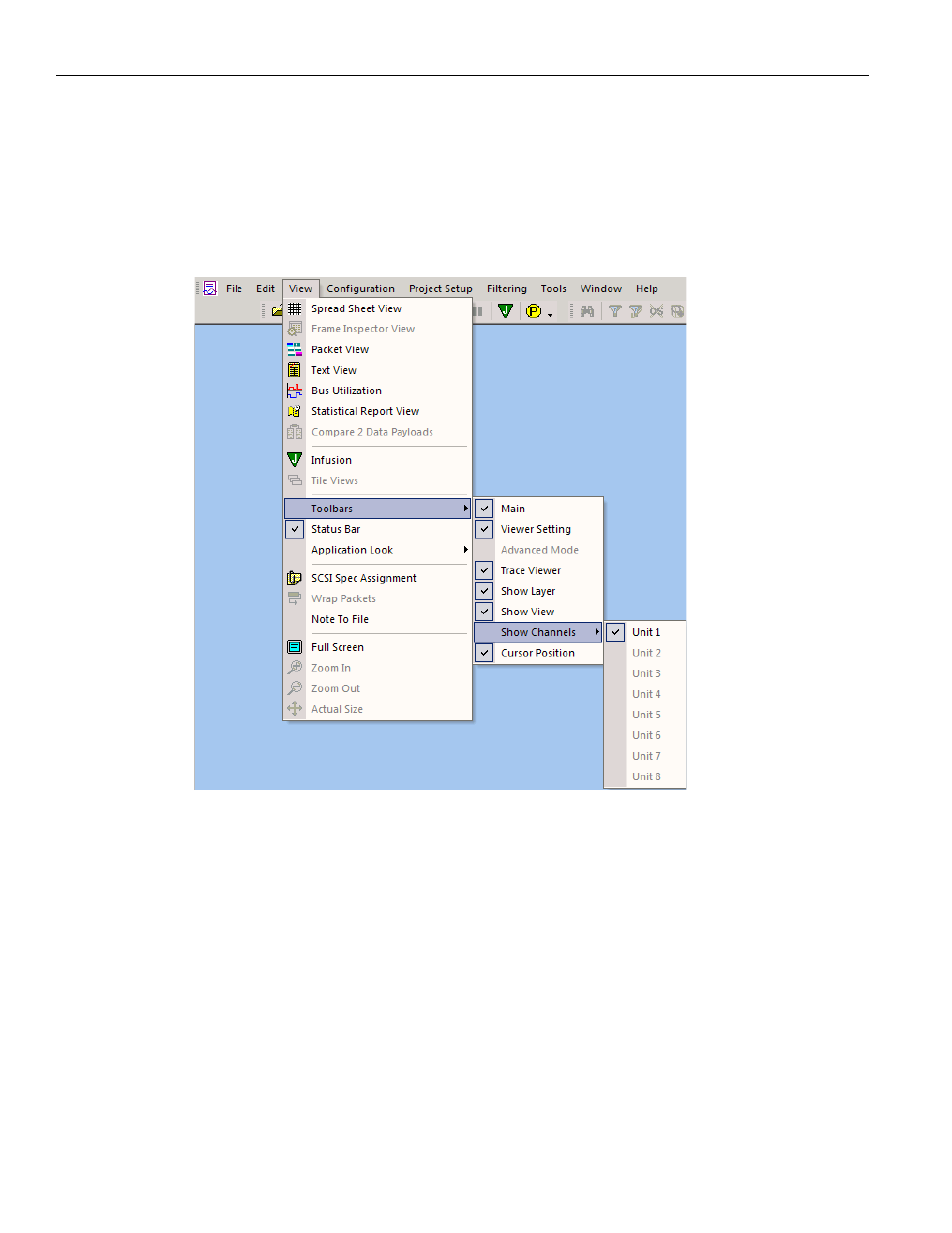

Figure 3.27: Customizing the Toolbar
Toolbars are:
 Main
 Viewer Setting
 Advance Mode
 Trace Viewer
 Show Layer
 Show View
 Show Channels (Unit 1, Unit2, and so on)
 Cursor Position
 Customize
Once enabled, the toolbars can dock at the Viewer Display window or float on the
windows desktop.
