Add VSAN‐FICON Data
Double‐click VSAN‐FICON(Data) in the Patterns Library panel to open the VSAN‐FICON
Data dialog.

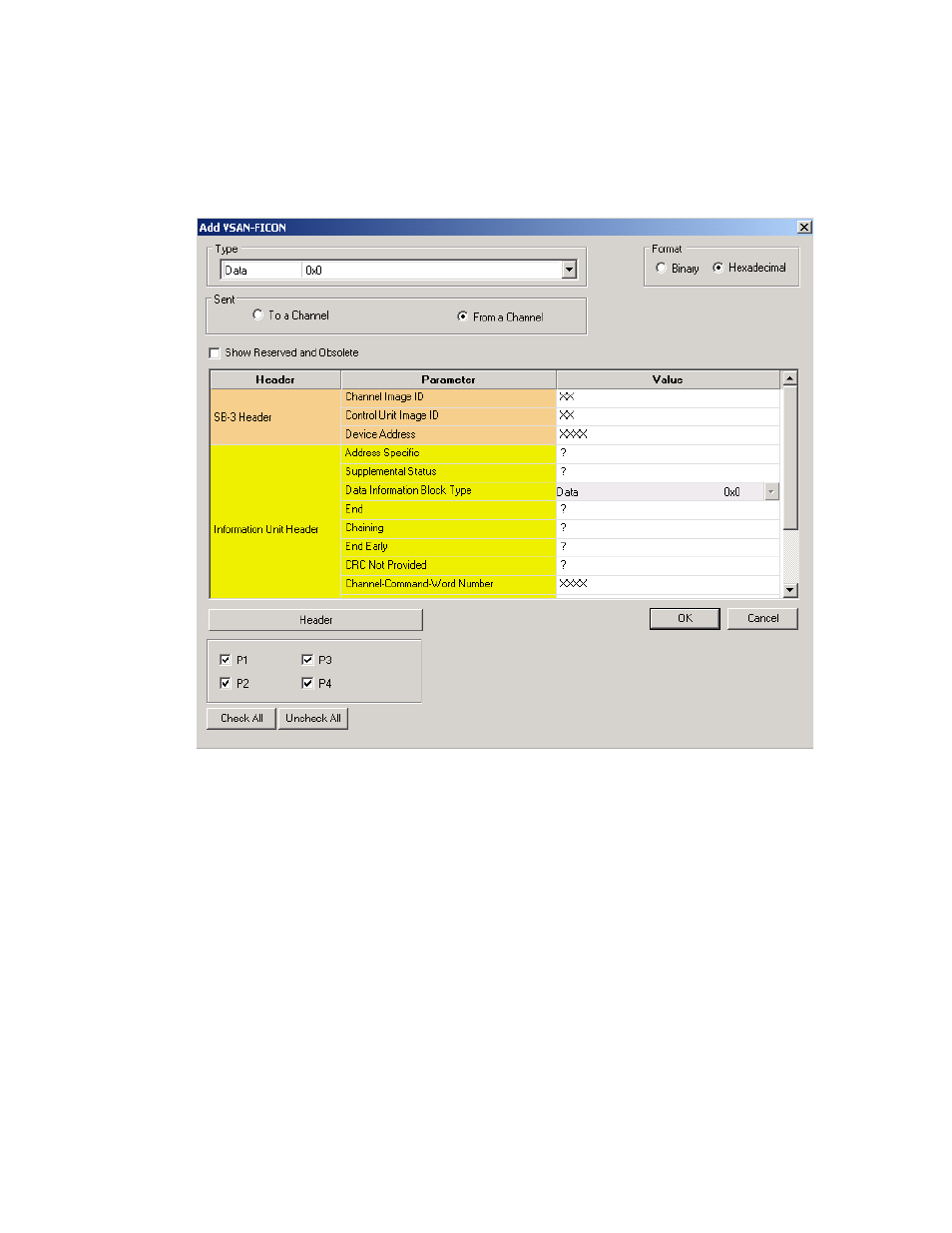

Figure 2.85: VSAN-FICON (Data) Dialog
The format can be Binary or Hexadecimal.
To select a Type click the dropdown list which has the following options:
 Any
 Data
 Command
 Status
 Control
 Command and Data
 Link Control
