Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
68 SierraFC M8‐4 Protocol Analyzer User Manual
FICON[Status]‐Status Byte
The FICON[Status] has an additional Status Byte dropdown menu under the Value pane
on the right of the dialog as shown in the following figure.

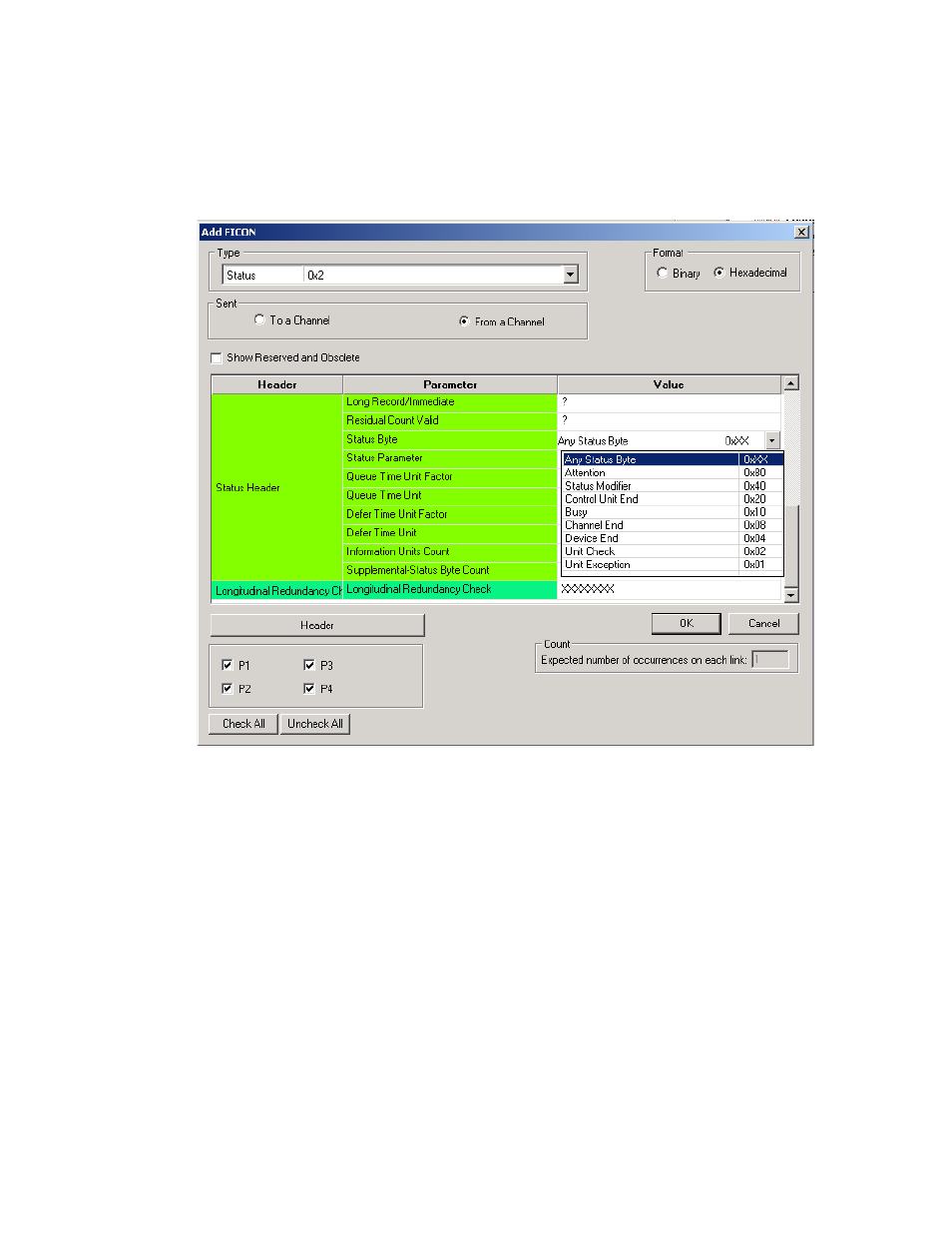

Figure 2.37: FICON[Status] - Status Byte Dialog
To select Status Byte click the dropdown list which has the following options:
 Any Status Byte
 Attention
 Status Modifier
 Control Unit End
 Busy
 Channel End
 Device End
 Unit Check
 Unit Exception
