SierraFC M8‐4 Protocol Analyzer User Manual 197
Bus Utilization View Teledyne LeCroy
Main Toolbar
See “Software Menus and Toolbar” on page 35 .
Show View Type Toolbar
See “Switching Views” on page 179 .

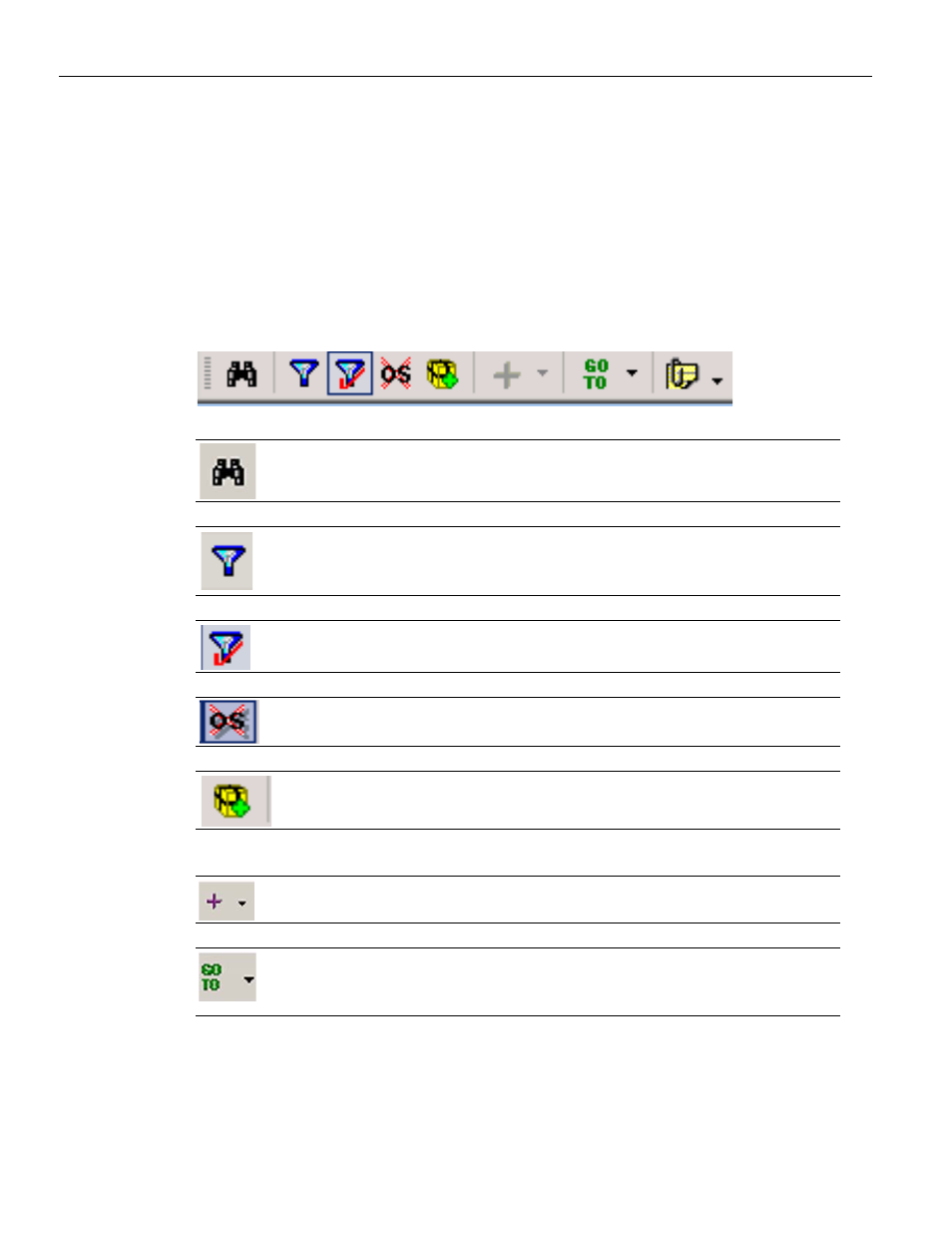

Trace Viewer Toolbar
The Trace Viewer toolbar allows searching, filtering, collapsing/expanding, and data
reporting.
The Search button opens the search dialog (see “Quick Search” on
page 230 ).
The Filtering Setup button opens the Filter dialog (see “Quick
Filtering” on page 222 ) and allows you to specify the criteria for
filtering the result.
The Enable Disable Filtering button toggles the result between a
filtered and unfiltered view (see
“Quick Filtering” on page 222 ).
The Hide All Ordered Sets button hides all the ordered sets.
The Pack Repeated Ordered Sets button toggles packing repeated
ordered sets in one port.
The Expand/Collapse all Layers button expands or collapses
Transport and Application layers to simplify results display.
The down arrow on the Go To button allows location of cursors or
specific packets: Trigger Position, X Position, Y Position, Packet
Number, Timestamp, Bookmark, Begin, and End.
