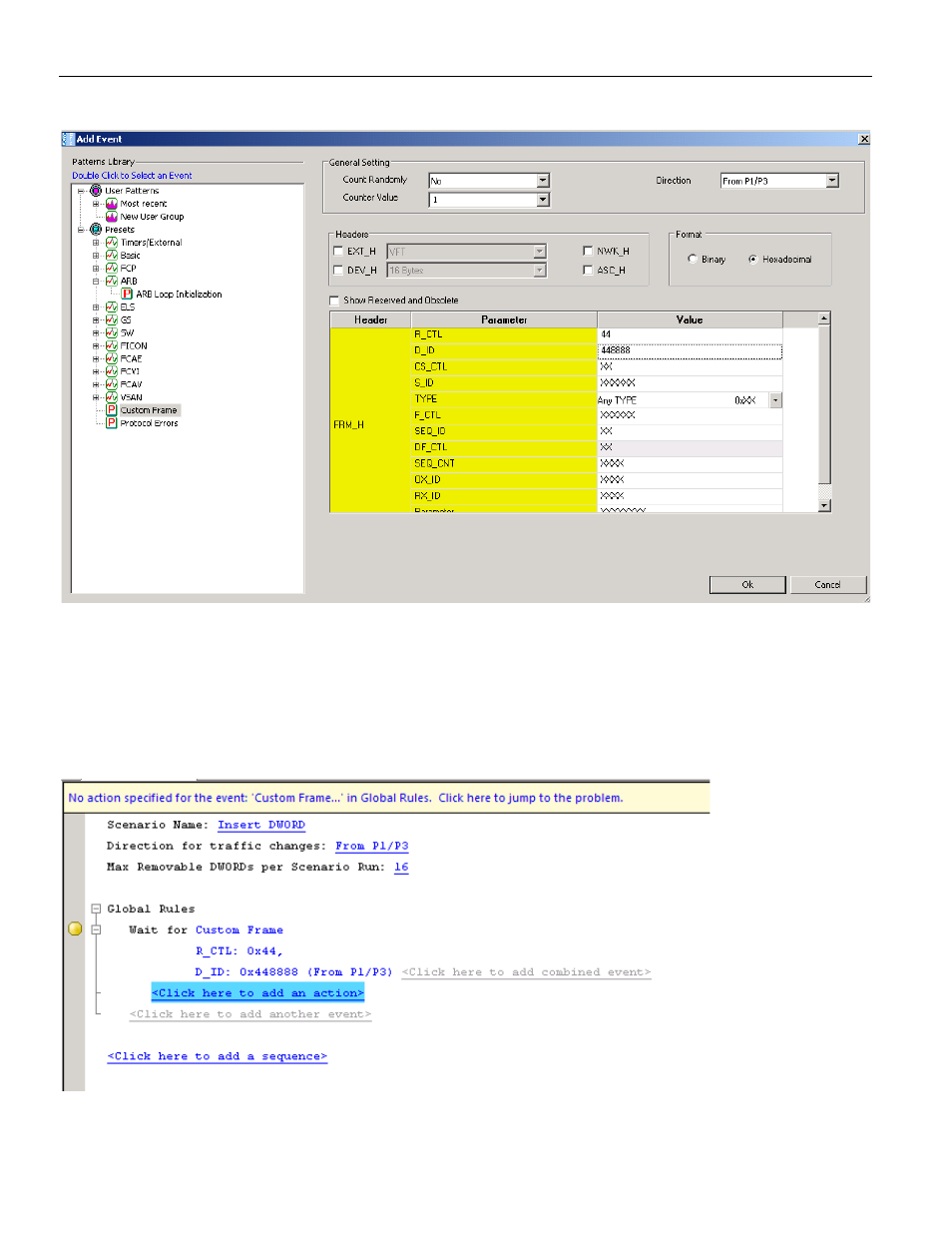

Figure 4.21: Example 2: Adding an Event
5. The Add Event dialog box opens. Double‐click on Custom Frame in the Patterns
Library pane. Enter values for R_CTL and D_ID.
6. Click OK to close the Add Event dialog box.
7. In the Global Rules area, click the link to .
Figure 4.22: Example 2: Adding an Action
