Teledyne LeCroy
Bus Utilization View
194
SierraFC M8‐4 Protocol Analyzer User Manual

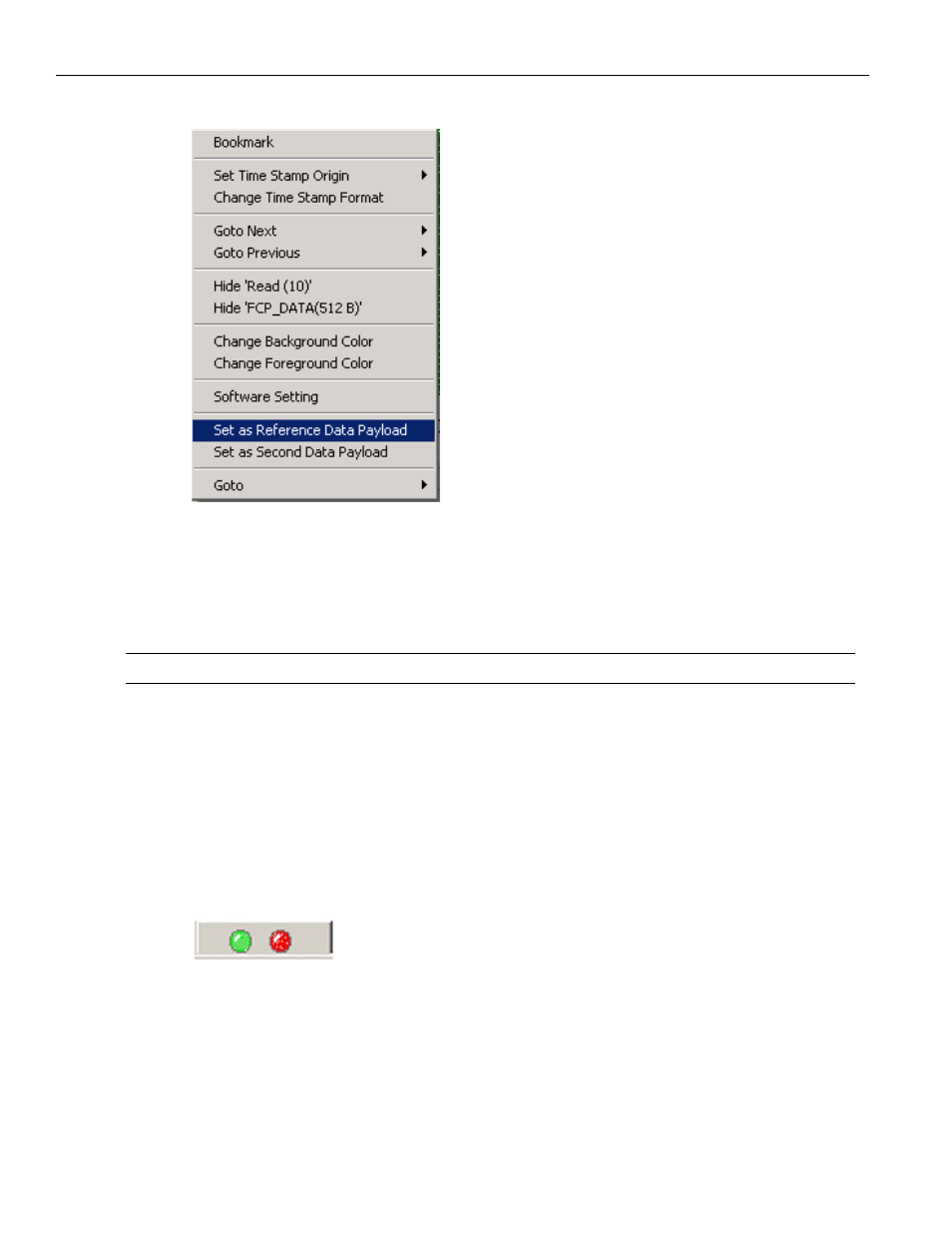

Figure 3.25: Set Reference and Second Data Payload Packets
Tile Horizontally All Views
You can use the Tile Horizontally All Views icon or select View > Tile Views to revert any
unintended window docking or sizing, or maximize screen utilization. This function only
tiles views inside a trace window.
Note:
Note that there is no command to tile views vertically.
Verification Scripts
You can perform custom post‐process analysis of the open trace by running a verification
script over the trace. For more information, see
“Running Verification Script Engine
.
Port Status
You can get an overview of the active ports by clicking the Port Status button at the
bottom right of the application window.
The Port Status displays the Port, Speed, and Function.
In addition to displaying Link, Frame, and Error, a display showing the% buffer full opens
when a trigger occurs. The Error, Trigger and Buffer indicator columns are displayed only
when recording (see
).
