Teledyne LeCroy Scenario Batch Files
316 SierraFC M8‐4 Protocol Analyzer User Manual
In this window, you can enter a script command by clicking Click here to add
script command.
1. Click on to open the Command Parameters
dialog.

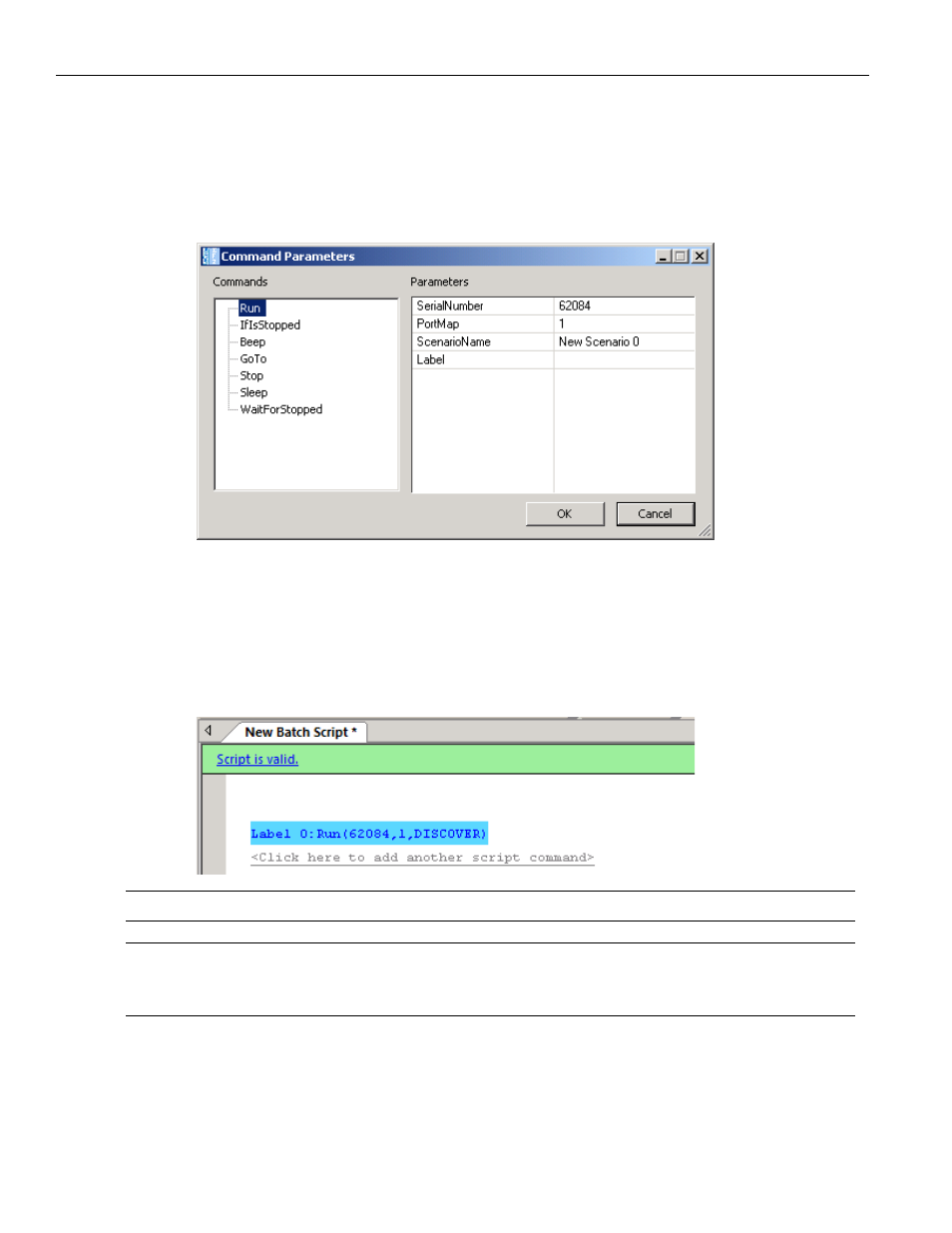

Figure 4.42: Command Parameters
The Command Parameters Dialog contains the list of available commands and their
parameters from which to build Scenarios and connected hardware and available ports.
2. Select appropriate parameters for the command and click OK to display the script in
the Script Workspace.
Note: You can select ports from the port list, depending on number of ports licensed.
Note: The hardware Serial Number may already exist or not. If the Serial Number exists, the Serial
Number (for example, S/N: 12871) is shown. In Offline and Simulation mode, you can enter a
Serial Number. In Online mode, you can only enter an existing Serial Number.
