Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
42 SierraFC M8‐4 Protocol Analyzer User Manual
When you check the Exclude Patterns box, the Ordered Set category appears in the
Pattern List, and the Exclude Idle item appears in the Project Overview under the
Capture (Exclude) branch.

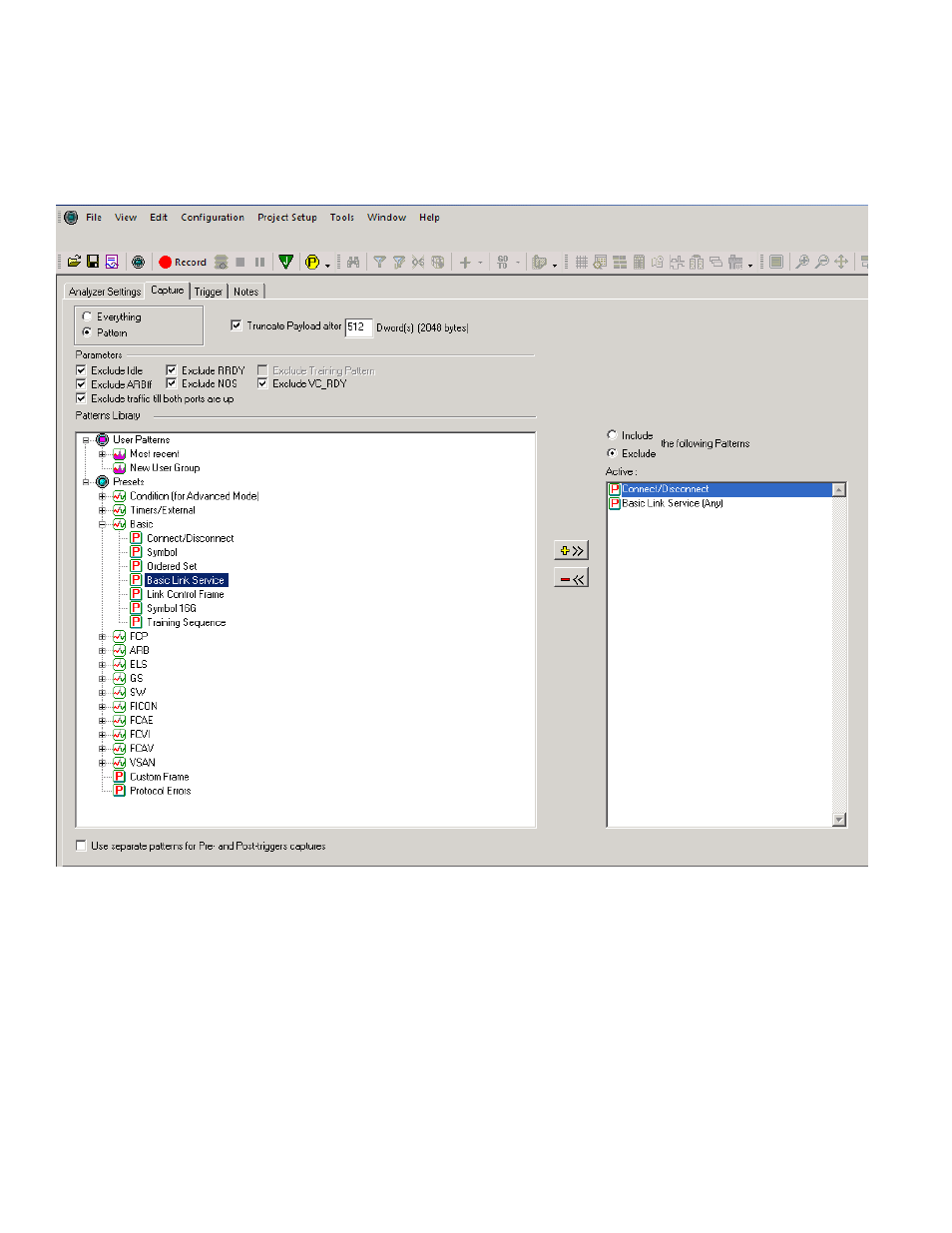

Figure 2.11: Exclude Patterns Checked
To remove an item from capture, highlight it in the Project Overview and click the ‐<<
button.
