Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
50 SierraFC M8‐4 Protocol Analyzer User Manual
SCSI Command Status
Double‐click SCSI Command Status in the Pattern window to open the Add SCSI
Command Status Pattern dialog.

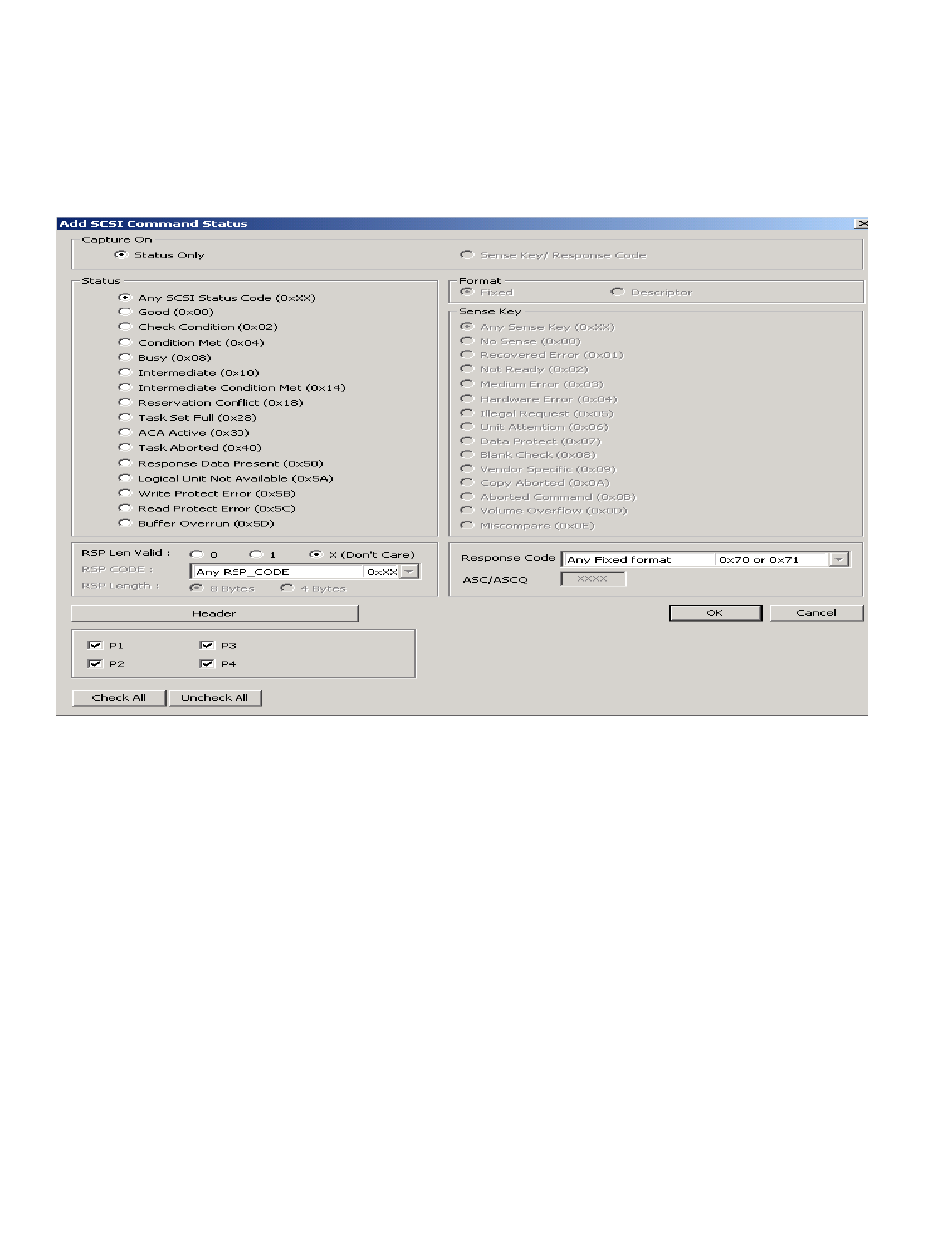

Figure 2.19: SCSI Command Status Pattern Dialog
You can capture on Status Only or Sense Key/Response Code. Click on Status Only to
display all the states that are available. Click on the Sense Key/Response Code to display
all the Format and Sense Keys.
RSP_CODE: It is selected by default. You can click on the dropdown list to select more
options.
