SierraFC M8‐4 Protocol Analyzer User Manual 209
Statistical Report Teledyne LeCroy
ELS Commands
To display the ELS Commands Report, click the ELS Commands tab. The ELS Commands
Report displays the ELS Commands data. The following information is displayed in this
report:
 Port: The ports that are selected
 Source ID: All, Custom, FABRIC, and other
 Destination ID: All, Custom and other
 Type: All, Custom, and other
 Response Type: All, Custom, Accept and Incomplete
 Duration: All, Custom and other
 Count: All, Custom, or a number of occurrences
 %: Percent of total count

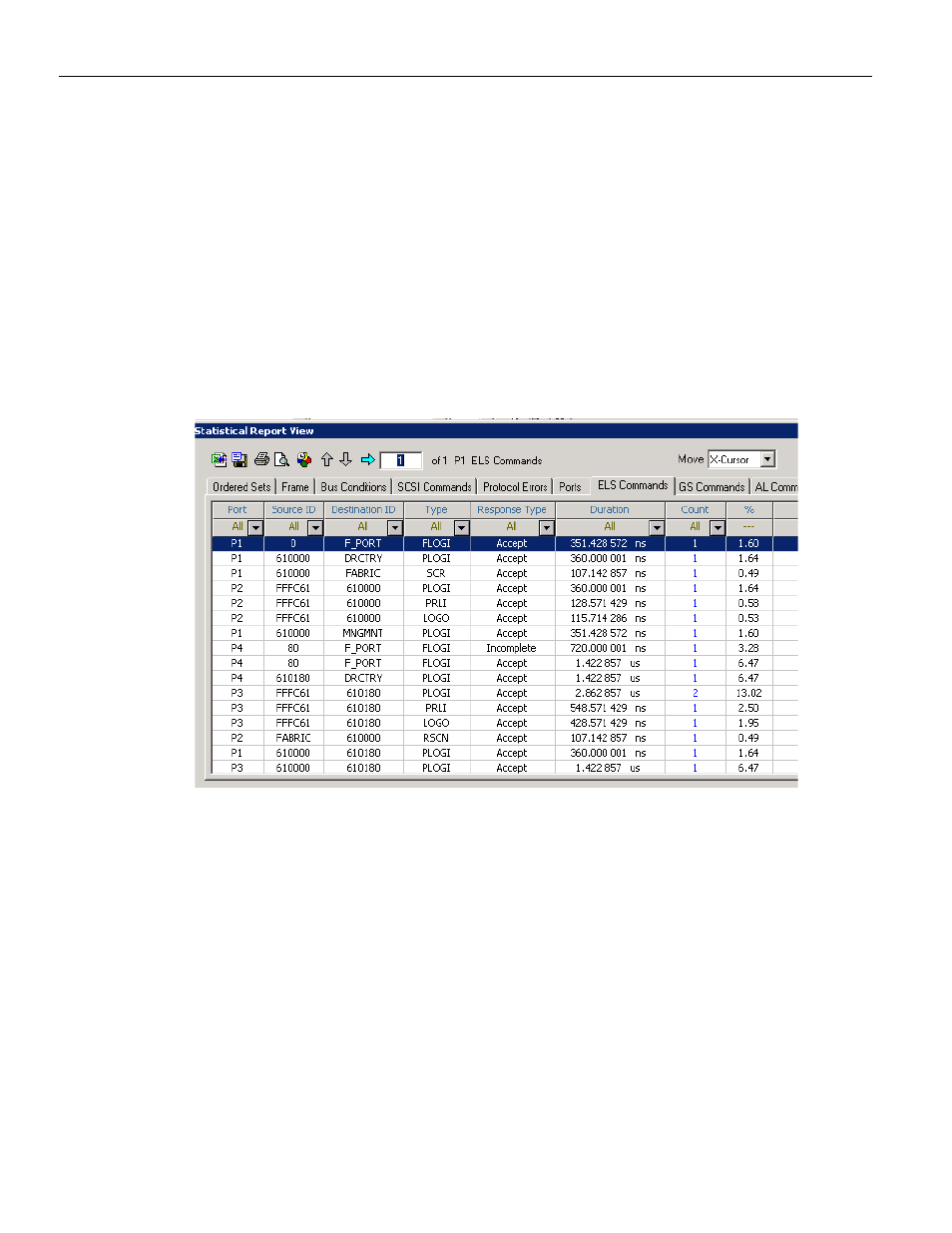

Figure 3.39: ELS Commands Report
