Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
122 SierraFC M8‐4 Protocol Analyzer User Manual
Add VSAN‐FICON Control
Double‐click VSAN‐FICON(Control) in the Patterns Library panel to open the VSAN‐FICON
Control dialog.

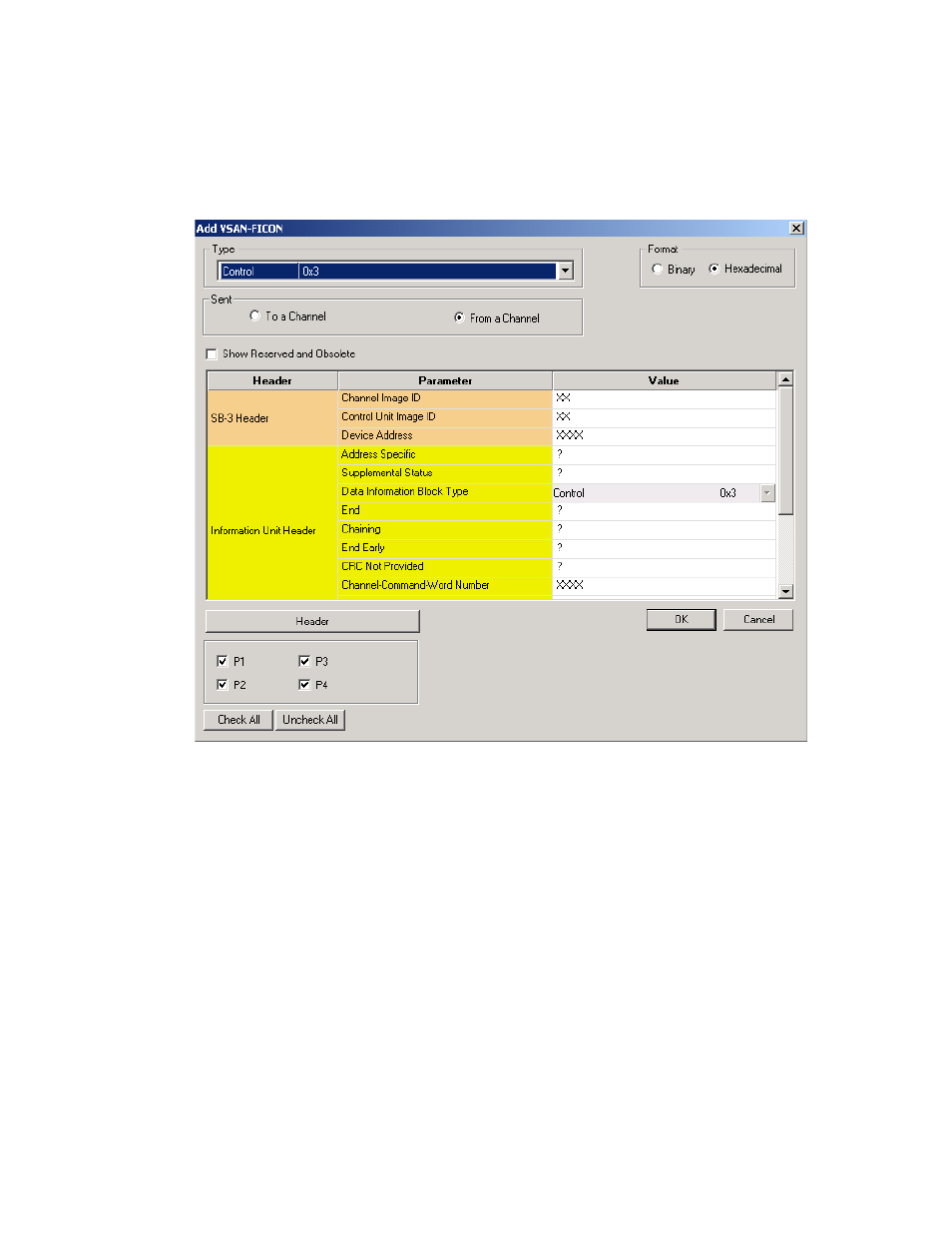

Figure 2.91: VSAN-FICON (Control) Dialog
The format can be Binary or Hexadecimal.
To select a Type click the dropdown list which has the following options:
 Any
 Data
 Command
 Status
 Control
 Command and Data
 Link Control
