SierraFC M8‐4 Protocol Analyzer User Manual 187
Bus Utilization View Teledyne LeCroy

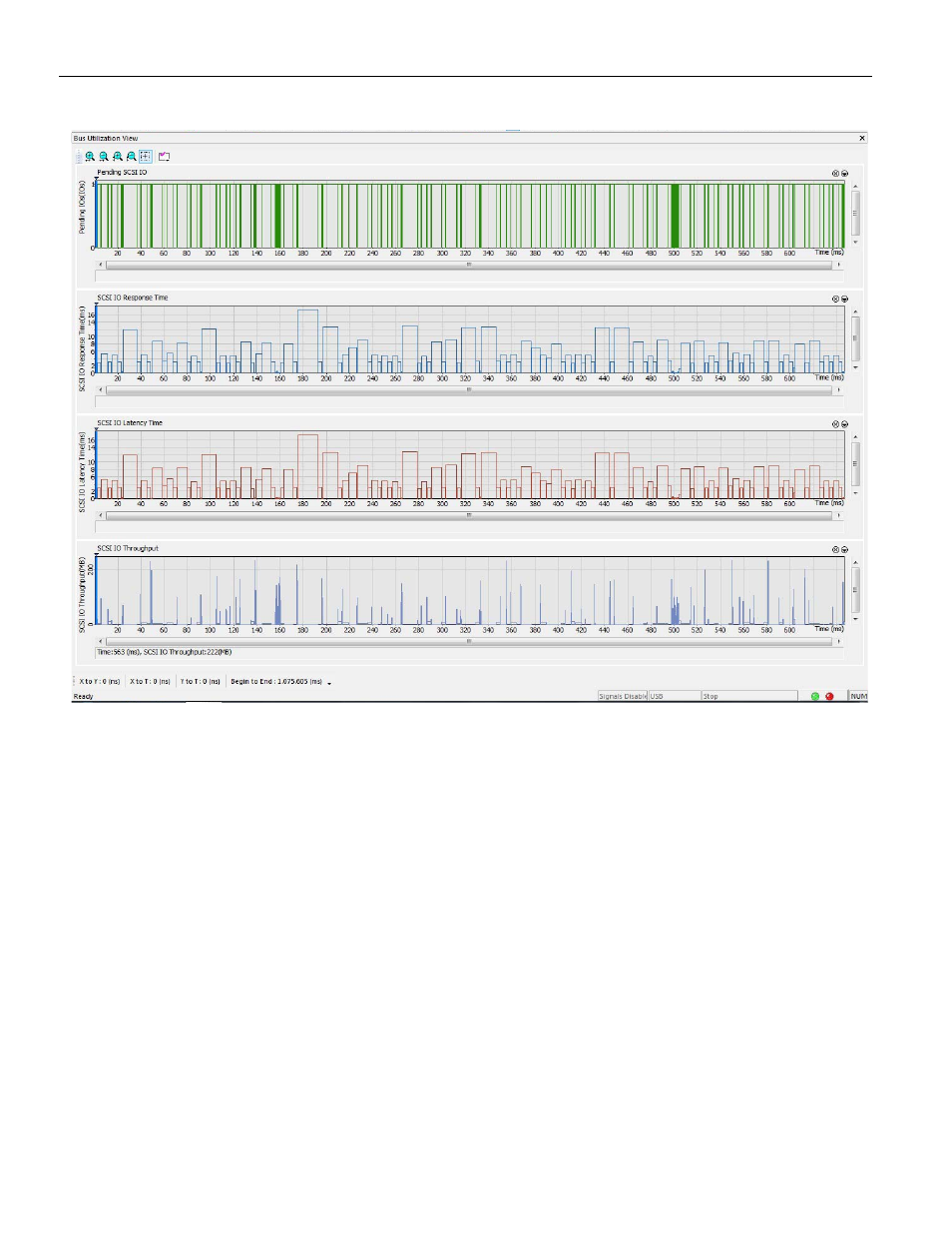

Figure 3.16: Bus Utilization View for Pending SCSI IO
Available Bus Utilization Views are:
 Pending SCSI IO
 SCSI IO Response Time
 SCSI IO Latency Time
 SCSI IO Throughput
Hovering the mouse over the graph heading displays the graph legend.
The available right‐click commands are:
 Go to ATA/SCSI Cmd. #: Jump to command.
 Synchronize with Trace View: Synchronize all open views to that location in the
trace.
 Fit to Graph Area: Zoom to fit.
 Hide: Do not display the graph.
To synchronize all open views to that location in the trace, double‐click the graph.
