SierraFC M8‐4 Protocol Analyzer User Manual 173
Advanced Mode (User‐Defined) Teledyne LeCroy
Multi-Link Triggering
You can set different triggering for each link. To set different trigger conditions for a link,
check the Multi Sequencer check box and select the link for setup from the Port drop‐
down list. When you select this option, you can define a sequencer per link (pair port).
These sequencers are independent from each other and will be run separately on each
link.

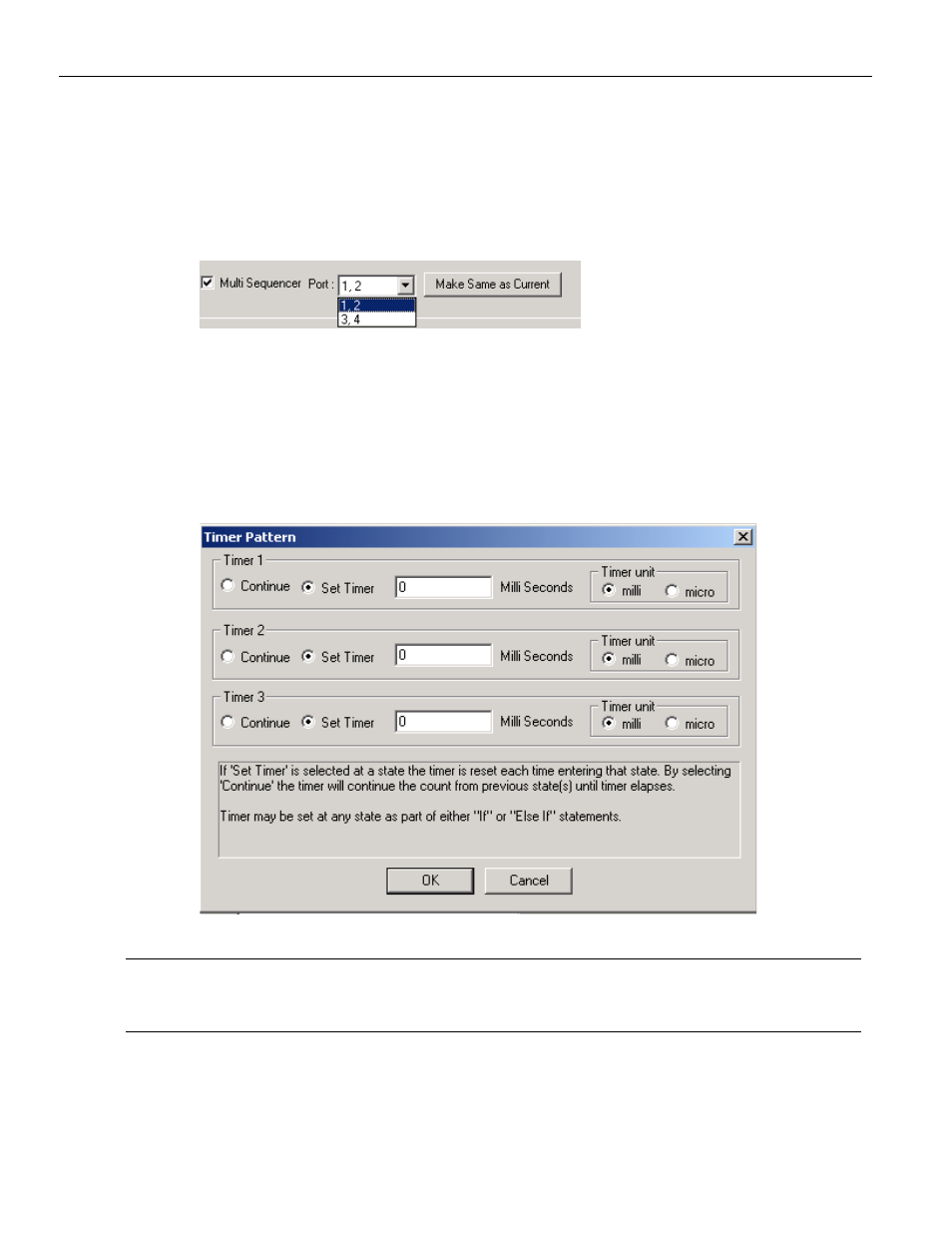

Figure 2.133: Multi-Link Triggering Setup
Set Timers
You can set and use up to three timers for triggering. You can set each timer for each state
or continue from a timer set in the previous state. The timer defined for a particular state
starts when entering that state. To set timers, click the ellipses in the Timer field in each
state and define each of the timers in the Timer Pattern dialog.
Figure 2.134: Timer Pattern Dialog
Note: Three timers are available. You have to set and start each timer in order to continue the next
timer. For example, you have to start Timer 1, continue it, then set Timer 2 in order to continue
it. It will not allow you to continue Timer 2 until you first set it.
