Teledyne LeCroy Easy Mode (Pre‐Defined Setups)
70 SierraFC M8‐4 Protocol Analyzer User Manual
FICON[Control]‐Control Function
The FICON[Control] has an additional Control Function dropdown menu under the Value
pane on the right of the dialog as shown in the following figure.

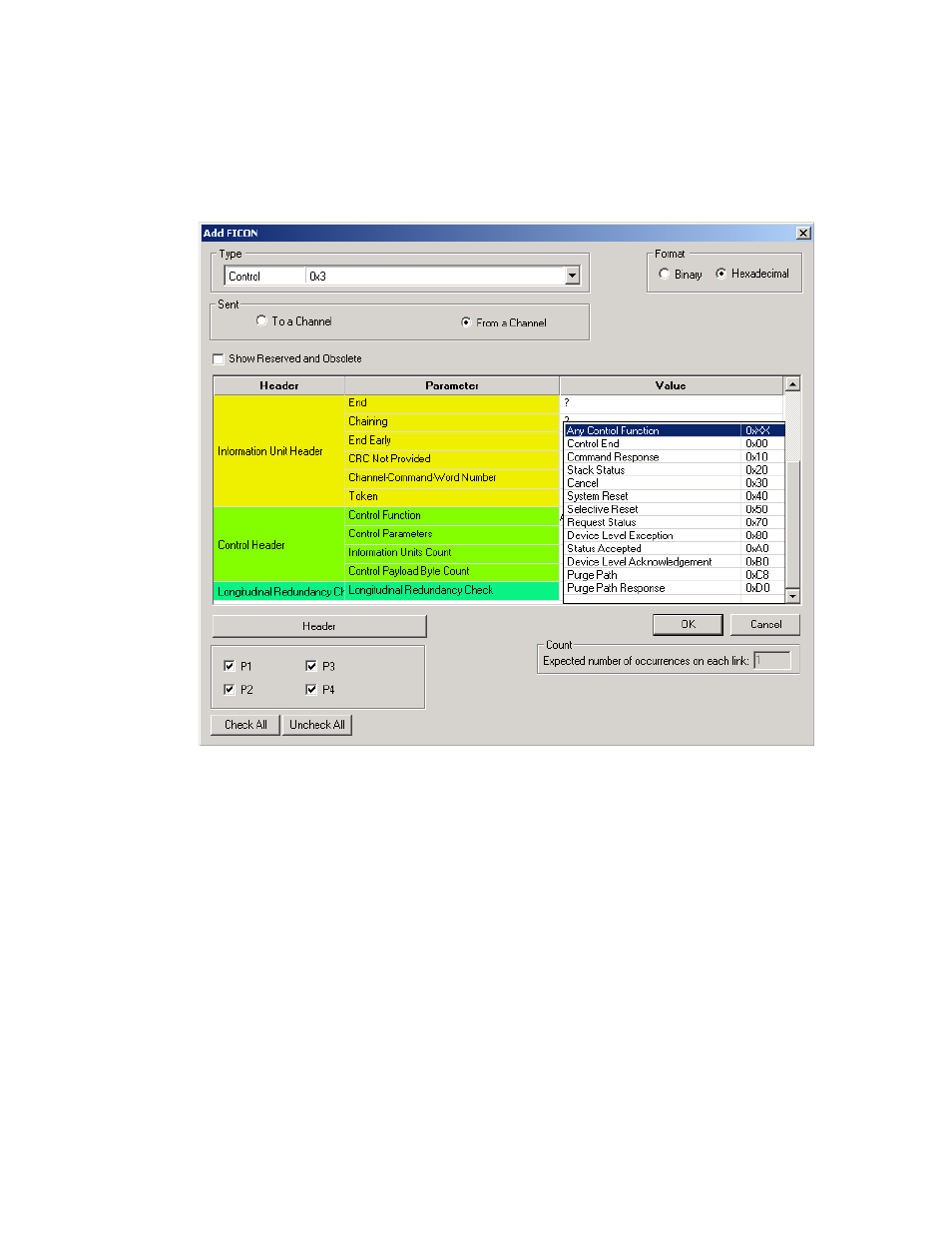

Figure 2.39: FICON[Control] - Control Function Dialog
To select Control Function click the dropdown list which has the following options:
 Any Control Function
 Control End
 Command Response
 Stack Status
 cancel
 System Request
 Selective Reset
 Request Status
 Device Level Exception
 Status Accepted
 Device Level Acknowledgement
 Purge Path
 Purge Path Response
