SierraFC M8‐4 Protocol Analyzer User Manual 79
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
FCAE‐1553[Command]‐Data Byte Count /Mode Code
The FCAE‐1553[Command] has an additional Data Byte Count /Mode Code dropdown
menu under the Value pane on the right of the dialog as shown in Figure 2.46. The
dropdown menu items could be truncated, hover the mouse over the option to see the
full menu option (see the following figure).

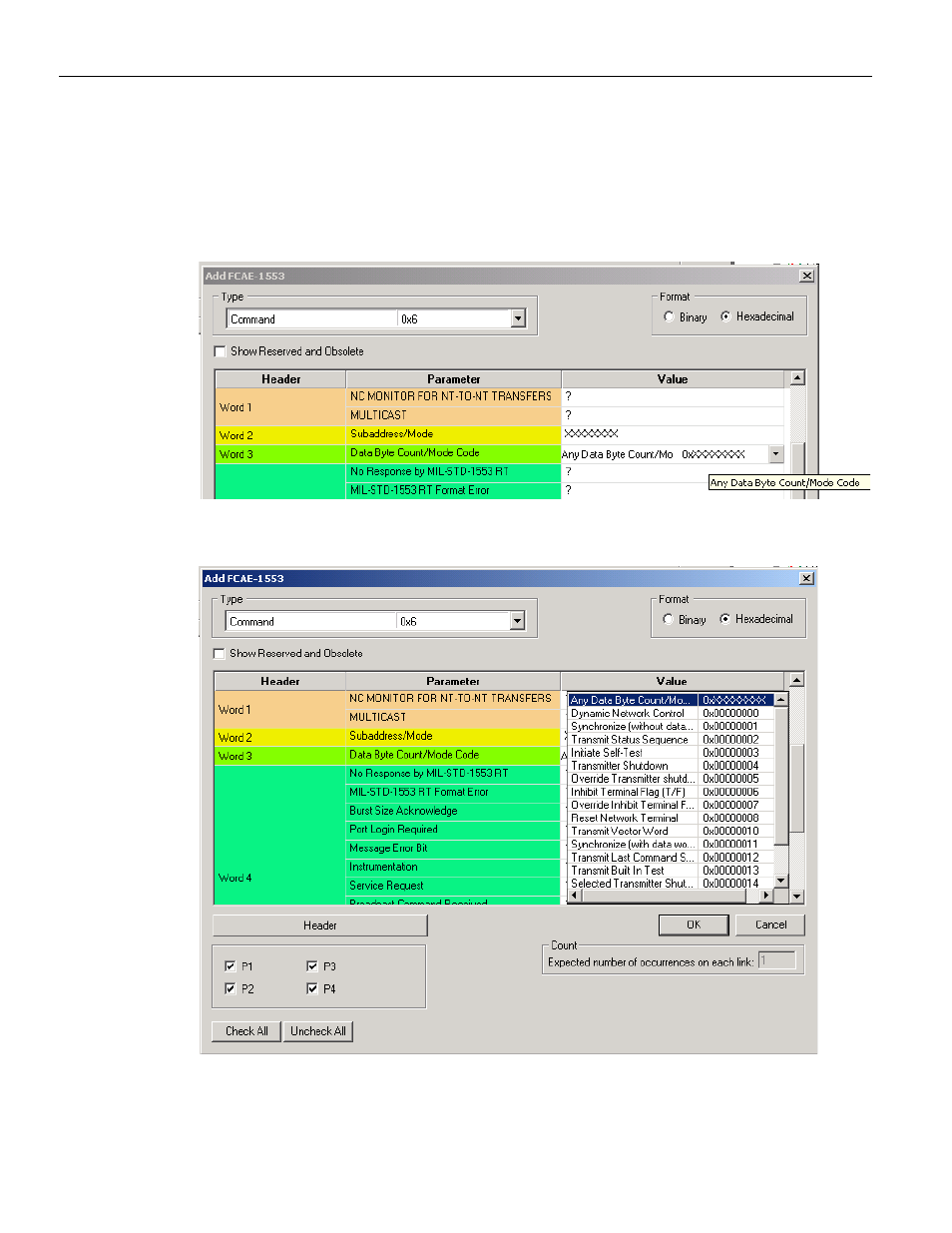

Figure 2.48: Hover the Mouse to see the Full Menu Option
Figure 2.49: FCAE-1553[Command]- Data Byte Count/Mode Code Dialog
