SierraFC M8‐4 Protocol Analyzer User Manual 131
Easy Mode (Pre‐Defined Setups) Teledyne LeCroy
Add FCAE‐1553 Command
Double‐click VSAN‐FCAE‐1553(Command) in the Patterns Library panel to open the
VSAN‐FCAE‐1553 Command dialog.

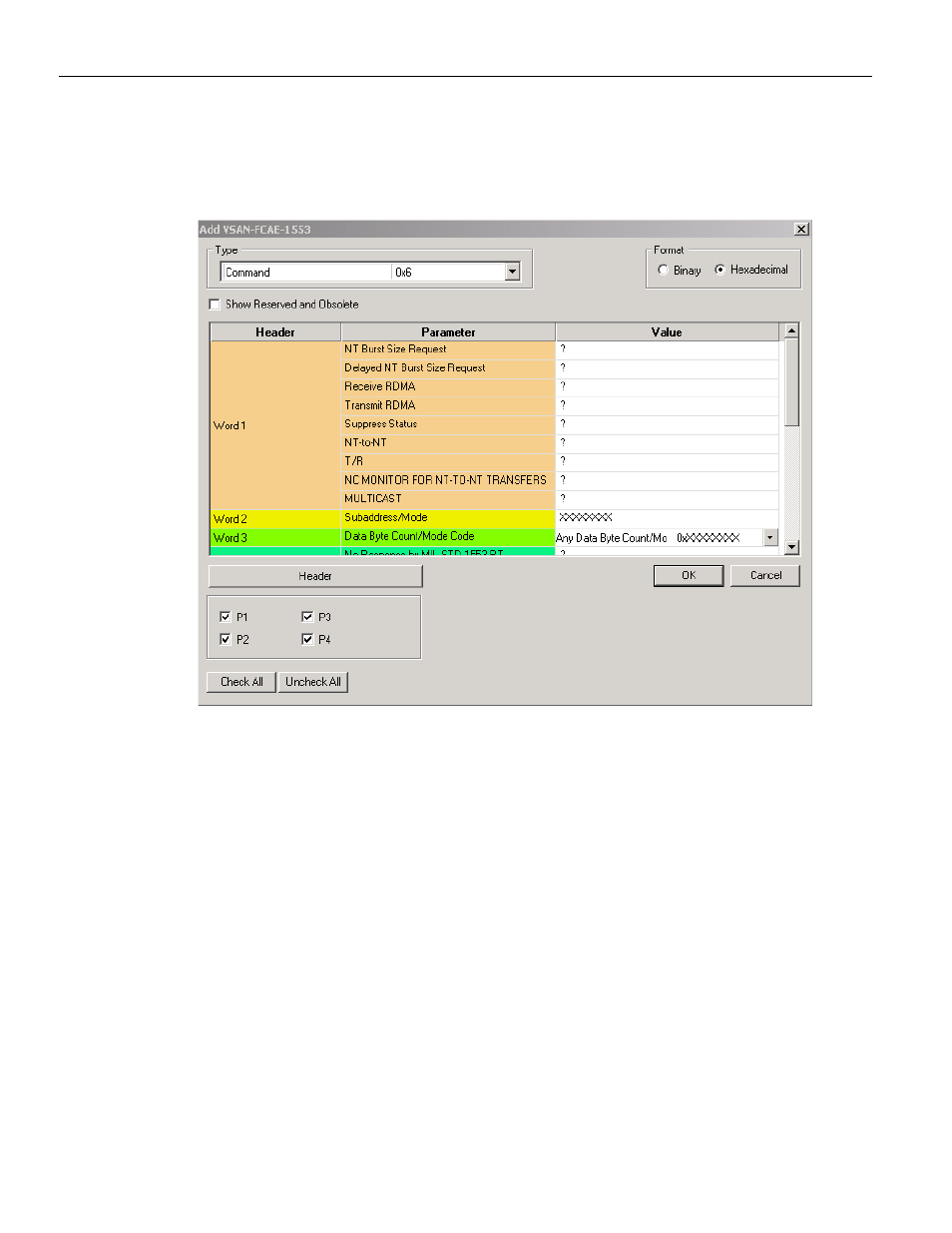

Figure 2.100: VSAN-FCAE-1553 (Command) Dialog
The format can be Binary or Hexadecimal.
To select a Type click the dropdown list which has the following options:
 Any
 Data
 Command
 Status
